Double Functional Pin Brinell Hardness Tester PHB-150

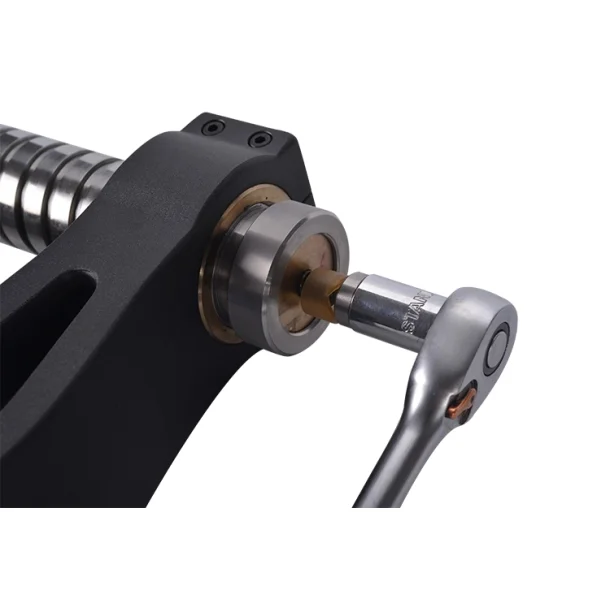

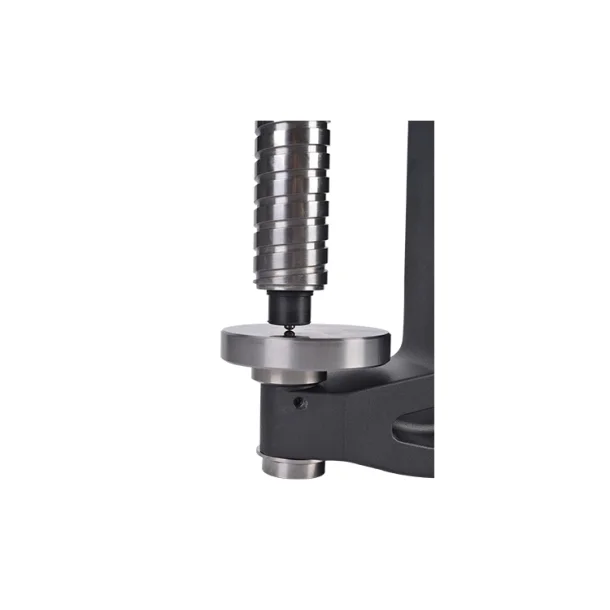

PHB-150 Double functional pin Brinell hardness tester is designed following the Brinell hardness test method, with static screw or dynamic hammer impact loading test force, through a calibrated shear pin to control the force precisely. Test force F=1580 kgf, diameter of test ball D=7.26 mm, which leads F/D2=30. It follows Brinell similarity principle, equals to normal condition of 3,000 kgf, 10 mm test ball. It can be widely used to test the hardness of forgings, castings, steels, nonferrous metal and its alloy products, and to test the hardness of annealed, normalizing and tempered mechanical parts.
Advantages of Double Functional Pin Brinell Hardness Tester PHB-150
- High Reliability. Good force value consistency, no influence by operator.
- Flexible Application. Middle or small parts could apply static force loading, and large part could apply hammer impact.
- Simple Operation. Only consume 1 piece of cheap shear pin for each test.
- High Accuracy. The accuracy is the same as desk tester. The Brinell hardness testing machine could replace Leeb hardness tester in low accuracy and reliability.
Parameter of Double Functional Pin Brinell Hardness Tester PHB-150
| PHB-150 | |
|---|---|
| Test Force | 1,580 kgf |
| Indenter | 7.26 mm Steel Indenter, test range 100~350 HBW 4 mm Carbide Alloy Indenter, test range 350~650 HBW |
| Indicator Error | Static type ≤2~3%, comply with ISO, ASTM Hammer Impact Type: ≤5% |
| Repeatability Error | Static type ≤2~3%, comply with ISO, ASTM Hammer Impact Type: ≤5% |
| Test Range | 100~650 HBW |
| Opening Dimension | 150 mm (Height) × 100 mm (Depth) |
| Weight | 4.2 kg |

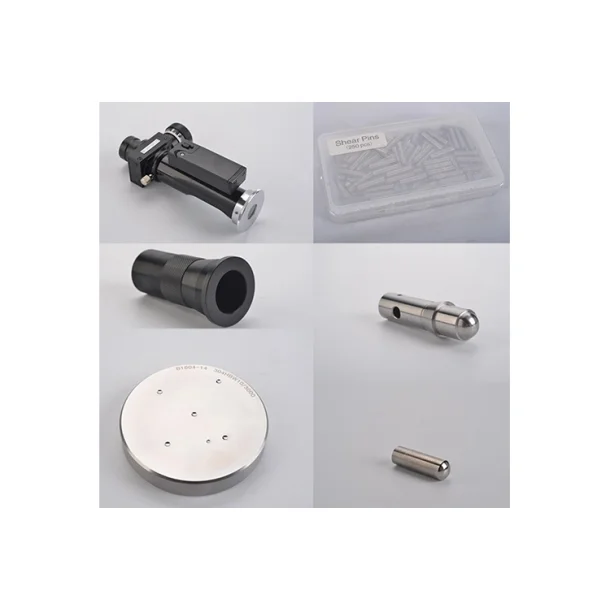

| Standard Assembly | Optional Accessories |
|---|---|
| Tester | 7.26mm Steel Indenter |
| 7.26mm Steel Indenter | 4mm Carbide Alloy Indenter |
| Indenter Holder | Pin (250 pieces/box) |
| Flat Anvil | Brinell Hardness Block (HB10/3000) |
| V-shape Anvil | Sphere Spot Anvil (for pipe or curved plate) |
| Impact Cylinder | Small Flat Anvil (for small parts) |

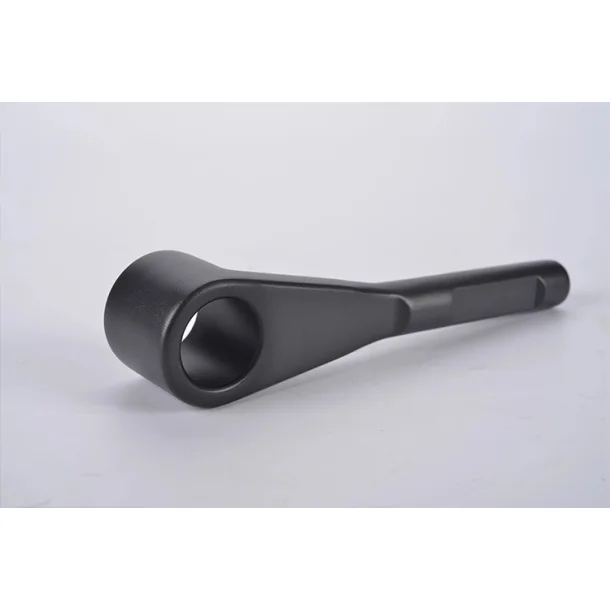

| Holding Handle | 20x Reading Microscope |
| Brinell Hardness Block (HB10/3000) | 40x Reading Microscope |
| Pin (250 pieces/box) | Brinell Indentation Measurement System |
| Pin Removal Tool | |
| 20x Reading Microscope | |
| Rubber Protective Cover | |

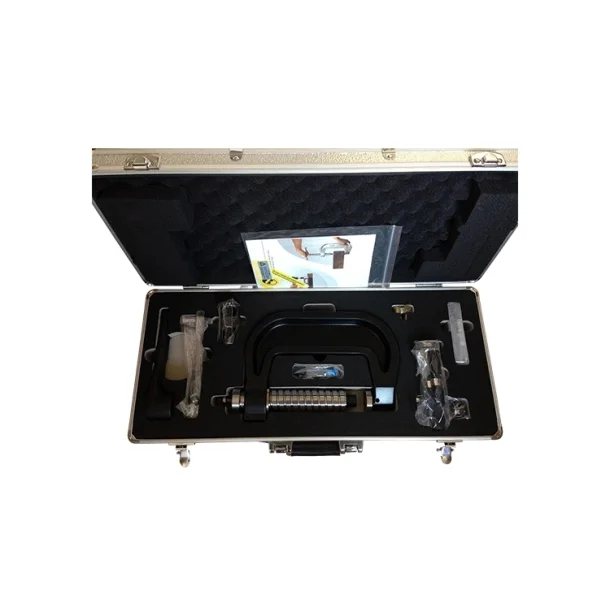

| Carrying Case |
| Title | Type | Size | Download |
|---|---|---|---|
| tx-phb-1-phb-150-users-manual.pdf | 29.27MB | Download |
