DP-64 Handheld Thermal Camera – Precise Temperature Measurements for Professional Use
DP-64 is an advanced handheld thermal camera designed for precise temperature measurements in industrial environments. Equipped with a high-sensitivity infrared detector and a 640x480 IR resolution, the DP-64 can quickly identify temperature changes and detect overheated targets in its surroundings. This makes it ideal for inspecting mechanical systems, electrical equipment, HVAC maintenance, and production lines.
With DP-64, you get a device that combines visible light and thermal images, allowing you to merge both image types for faster troubleshooting.

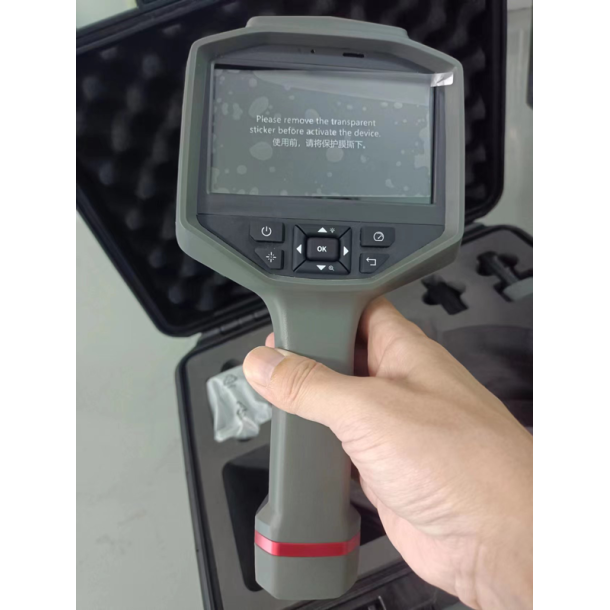

It features a 4.3-inch LCD touch screen with high brightness, easy to use even in sunlight, providing you with precise control over the measurements.
DP-64 is the ideal solution for professionals in industrial inspection, electrical equipment troubleshooting, and mechanical maintenance that require accurate and fast thermal measurements. With its robust design and easy operation, the DP-64 is built to withstand even the most challenging work environments.
Features and Benefits:
- 640x480 infrared resolution for sharp thermal image quality.
- Temperature measurement range from -20°C to 600°C (up to 1200°C optional).
- Dual-light fusion and PIP function for precise visual and thermal image processing.
- High temperature sensitivity (≤50mK@25°C) ensures accurate measurements even in difficult conditions.
- 8x zoom and manual focus for detailed images at long distances.
- Temperature alarm with custom thresholds to alert you of abnormal temperatures.
- Option to add multiple measurement points like lines, points, and rectangles for specific areas.
- USB connection for real-time capture and offline analysis.
| Name | DP-64 |
|---|---|
| IR resolution | 640×480 |
| Lens | 25mm/F1.0 |
| Refresh rate | 30Hz |
| Pixel | 17μm |
| NETD | ≤50mK@25ºC |
| Zoom | 1x~8x |
| Focus | Manual |
| Measurement range | -20~600ºC (can be ODM, up to 1200ºC max) |
| Accuracy | ±2ºC or ±2% |
| Temperature selection | Supports high temp, low temp, area temp, etc. |
| Measuring method | Supports 1 global, 8 local (including temperature measurement points, line segments, rectangles), 1 center point and temperature monitoring based on different measurement areas |
| Alarm | Supports custom alarm temperature thresholds, real-time monitoring of temperature abnormalities such as high temp, low temp, and interval temp |
| Display size | 4.3 inch |
| Display type | Industrial screen, visible in sunlight, capacitive touch |
| Resolution | 800×480 |
| Image mode | Digital, thermal, blending, PIP |
| Title | Type | Size | Download |
|---|---|---|---|
| DP38--DP64-Brochure-1.pdf | 223.23KB | Download |
