H2FB Mobile Thermal Imager

€ 296

(excl. VAT)

Model/Product no.: #H2FB
pcs.

H2FB Mobile Thermal Camera – Plug-and-Play Solution for Precise Thermal Measurement

This device is only compatible with Android phones with USB-C and does not support iPhones.

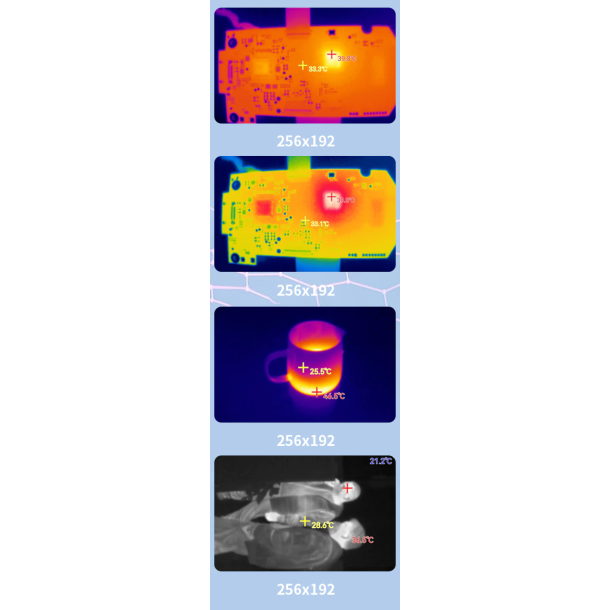

H2FB mobile thermal camera is a compact and powerful solution that easily connects to your smartphone via USB-C, making it an ideal tool for users who need precise thermal measurement and imaging on the go. With a resolution of 256x192, the H2FB delivers sharp and detailed thermal images, which are displayed live on your phone's display in high resolution, providing you with real-time analysis and quick response to thermal deviations.

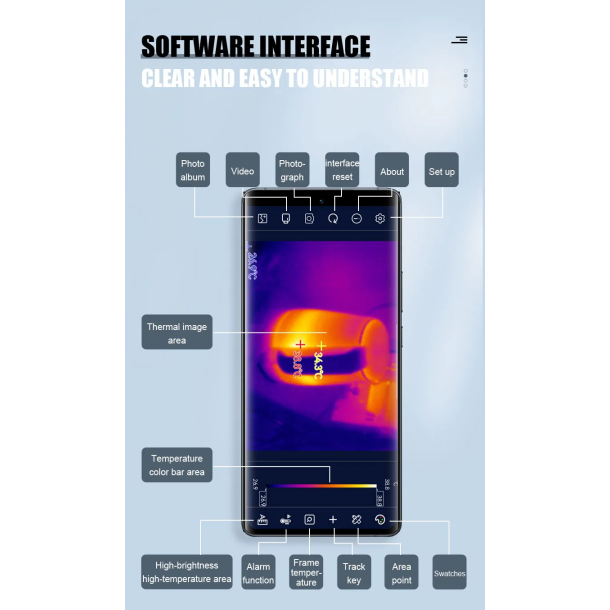

This plug-and-play device is perfect for outdoor inspections, equipment maintenance, HVAC systems, and electrical systems. You can easily connect the camera to your Android phone via USB-C, and with the accompanying app, you can perform advanced temperature measurement and image analysis, including point, line, and area measurement. The camera also supports both high and low temperature alarms, which can be adjusted as needed.



Features:

  • Plug-and-play, easy operation
  • High-quality optical lens and high-resolution detector ensure excellent image quality
  • Lightweight design under 20g
  • Supports high temperature alarm and customizable alarm thresholds
  • Supports central point temperature display and tracking of high and low temperatures
  • Supports temperature measurement with point, line, polygon, and other methods
  • Low power consumption, without draining your phone's battery
  • Shatter-resistant metal enclosure and elegant appearance







Parameters H2FB
Thermal imaging resolution 256*192
Detector parameters Size of surface element: 12um; NETD: < 50mK @25°C; Frame frequency: 25Hz
Temperature measuring parameters Temperature range: (-15~600)°C; Measuring accuracy: ±2°C or ±2% of the reading
Temperature measuring method Point temperature measuring, line temperature measuring, regional temperature measuring, high and low temperature automatic tracking, above-threshold alarm
Infrared lens parameters 3.2mm/F1.1; Field angle: H56°: V42°
Focus Fixed focus
Interface USB type-C
Image mode Soft mode, texture enhancement, high contrast
Palette 6 palettes supported
Temperature width Temperature measuring range is adjustable
Menu functions Language, emissivity, temperature unit, high temperature alarm, high and low temperature switch, picture and video





The app can be found here:

Android (Google Play Store): Infrared Thermal Imager
