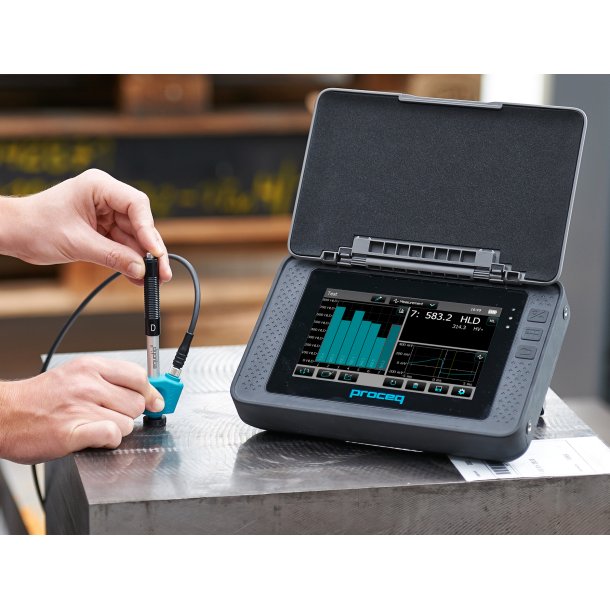

Equotip 550 (UCI, Leeb, Rockwell)

For price, contact us by Phone: (+45) 44 65 22 77 or Email: info@ndtvendor.com

Built to overcome the limitations of stationary bench hardness testing.

Top-model, state-of-the-art hardness tester from Proceq.
All the latest technology combined in a single device.

Choose between UCI, Leeb and Rockwell probes.

Unmatched versatility thanks to HV1, HV5 and HV10 test loads in a single probe
Patent-pending adjustable test load for higher accuracy across a wide range of applications
The most powerful measuring instrument on the market, packed in a rugged chassis

Description
Downloads

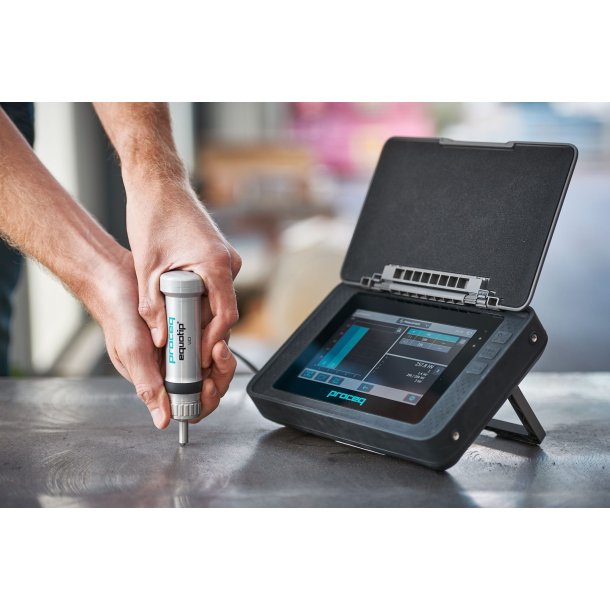

Equotip 550 UCI Hardness tester

The leading Ultrasonic Contact Impedance measurement system with advanced capabilities.

Adjustable test load and a rugged touchscreen with enhanced software and analysis features

Efficiency

Efficiency to the power of 2 thanks to three loads in one single probe HV1, HV5, and HV10 and possible combination with Portable Rockwell and Leeb in one device.

Productivity

Features with wizards, user guidance, personalised views, and on-screen feedback to reduce measurement inaccuracies that can be caused by the operator.

User Experience

User guidance, smart material, and probe selection wizards, and ready-to-go reports through a powerful built-in reporting feature facilitate even short measurement campaign.

Equotip 550 Platform

Tech Specs

Equotip 550 Platform

Display	7" color capacitive touchscreen
Instrument protection	- IP54, fully rugged with shock absorbing casing. - Scratch-resistant Gorilla® Glass screen protection. - Circuit and connector protection against dust, debris, chemicals and voltage spikes. - Foldable additional screen cover for additional protection during storage and transportation.
Memory	Internal 8 GB flash memory (> 1'000'000 measurements)
Combination with another testing method	Leeb, Portable Rockwell (PRT)
Connectivity	Ethernet & USB-B (PC connection), USB-A (PRT), Probe-specific slots
Battery	3.6V, Li-Ion, 14'000 mAh
Battery lifetime	> 10h (in standard operating mode)
Charging time	< 9h, < 5.5 h (External quick charger)
Power input	12V +/- 25% / 1.5A
Dimensions	250 x 162 x 82 mm / 9.87 x 6.37 x 6.44 in
Weight	1525 g / 3.35 lbs. (incl. battery)
Humidity operation	< 95% RH, non-condensing
Operating temperature	(–) 10°C to +50°C / 14°F – 122°F
Certification	CE, KC, FCC

Instrument

Tech Specs

Native Scale	HV(UCI)
Conversion scales	HLD, HB, HRC, HRA, HRB, HR15N, HR15T MPA (σf, σt, σb)
Measurement range	20–2000 HV
Indenter	ISO 6507-2 compliant, 136° Vickers diamond
Impact energy / Test force	HV1 (9.8 N), HV5 (49 N), HV10 (98N) in one probe
Accredited calibration	ISO/IEC 17025
Standard compliance	ASTM A1038 DIN 50159 GB/T 34205
Guidelines	ASTM A370 ASME CRTD-91 DGZfP Guideline MC 1 VDI / VDE Guideline 2616 Paper 1
Conversion standards	ASTM E140 ISO 18265 Proceq’s own conversion curves
Measurement resolution	1 HV(UCI), 0.1 HRC
Measuring accuracy	± 2%
Measurement deviation (E)	Lower than DIN 50159 & GB/T 34205
Coefficient of variation (R)	Lower than DIN 50159 & GB/T 34205
Weight	245 g / 8.6 oz
Dimensions	155 x 40 mm (6.1 x 1.57 inches) without foot
