Entry model of Leeb D/DL probe with integrated display
-
Perfect for quick and reliable testing on site
-
Compact metal housing and automatic correction
-
High accuracy is known for all Equotip products
Resolution & depth
Fully integrated and handy Leeb D/DL
hardness tester with a compact and robust
housing. Ideally suited for quick on-site
hardness tests.
Versatility
Compact housing and automatic angle
correction allow flexible use and can be
automated (Piccolo 2 only).
User Experience
Comes with the high accuracy known for all
Equotip products.

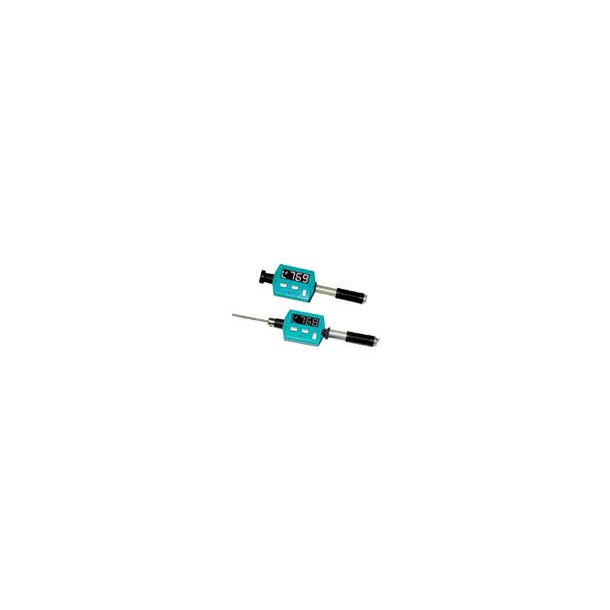

Equotip Bambino 2 / Piccolo 2
Piccolo 2 / Bambino 2
| Display | Monochrome, 4-digit |
| Instrument protection | Scratch-proof, hard-coated zinc metal alloy |
| Memory | 20000 impacts (Piccolo 2 only) |
| Combination with another testing method | DL conversion kit for Piccolo 2 / Bambino 2 |
| Connectivity | USB-B for charging , PC connection (Piccolo 2 only) |
| Battery | Li-Ion, 175 mAh |
| Battery lifetime | > 20'000 impacts |
| Charging time | < 2h, 100 mA charging current |
| Power input | 5V, through USB-B |
| Dimensions | 147.5 × 44 × 20 mm / 5.71 × 1.75 × 0.79 in |
| Weight | 142 g / 5 oz |
| Humidity operation | < 90% RH, non-condensing |
| Operating temperature | (-10)°C to +50°C / 14°F – 122°F |
| Certification | CE, KC, FCC |
Bambino 2 / Piccolo 2 Software
| Special features | - Automatic compensation for impact direction (except DL probe) - Remote control of Piccolo 2 settings - User-defined hardness conversions |
| Conversion curves applicable for materials | - Steel and cast steel - Work tool steel - Stainless steel - Grey Cast Iron (Lamellar, Nodular) - Cast aluminium, Alu AN40 - Brass Cu/Zn Alloys - Wrought copper alloys |
| Languages | Language-universal |
| Regional settings | Metric and imperial units, multi-language and time-zone |
| Audio support | Full digital audio |
Desktop Software (Windows)
| PC Software | Piccolo Link (Piccolo 2 only) for data download, management and export (CSV, PNG). Conversion curve management, and for upgrades of constantly expanding Equotip and Equotip Link Software |
| Language support | English, German, French, Italian, Spanish, Russian, Chinese |
Instrument
| Native Scale | HLD/HLDL |
| Conversion scales | HB, HV, HRB, HRC, HS, MPA (σ1, σ2, σ3) |
| Measurement range | 150-950 HLD, 250-970 HLDL |
| Indenter | Tungsten carbide (D, DL) |
| Impact energy / Test force | 11 Nmm (D, DL) |
| Accredited calibration | ISO/IEC 17025 |
| Standard compliance | ASTM A370 ASTM A956 DIN EN ISO 16859 GB/T 17394 JB/T 9378 |
| Guidelines | ASME CRTD-91 DZGFP Guideline MC 1 VDI / VDE Guideline 2616 Paper 1 Nordtest Technical Reports 92.12, 98.13, 99.36 |
| Conversion standards | ASTM E140 ISO 18265 Proceq's own conversion curves |
| Measurement resolution | 1 HLD/HLDL/HV/HB; 0.1 HRC/HRB/HS 1 N/mm² (Rm) |
| Measuring accuracy | ± 4 HLx (0.5% @850 HLD) |
| Measurement deviation (E) | Lower than DIN EN ISO 16859 |
| Coefficient of variation (R) | Lower than DIN EN ISO 16859 |
| Weight | 234 g / 8.26 oz |
| Dimensions | 147.5 × 44 × 20 mm / 5.71 × 1.75 × 0.79 in |
Standards & Guidelines
- ASTM A 370
- ASTM A 956
- ASTM E 140
- DIN 50156
- GB/T 17394
- ISO 16859
- JB/T 9378
- ASME CRTD-91
- DGZfP Guideline MC 1
- Nordtest Technical Reports 424-1,
- 424-2, 424-3
- VDI / VDE Guideline 2616 Paper 1
| Title | Type | Size | Download |
|---|---|---|---|
| Equotip-Piccolo-Bambino-2_Sales-Flyer_English_high.pdf | 543.90KB | Download | |
| Equotip-Piccolo-Bambino-2_Operating-Instructions_English_high.pdf | 2.20MB | Download | |
| Equotip-Piccolo-Bambino-2_Quick-Start-Guide_English_high.pdf | 2.16MB | Download |
