MR 96 ESL

€ 427

(excl. VAT)
Model/Product no.: #MR96ESL
pcs.

Product Features

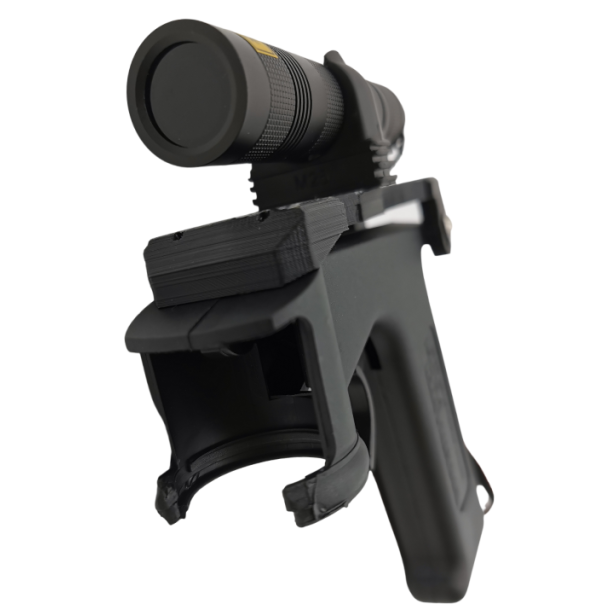

  • UV LED lamp with ergonomic spray aid (Art. 4763)
  • White light <5 lux thanks to MUG filter
  • Enables fatigue-free spraying
  • Easy application and controlled dosing
  • One-year warranty
  • Includes UV LED
  • Compatible with 96 DSL spray aid
  • Certificate included

✨ Significantly More Power

Our previous models MR® 96 D and MR® 96 DSL are history! These new lamps offer a significant increase in power! At a distance of 38 cm, a 140 mm light beam has an output of >10 watts.

📏 Standards Met

Our new models comply with current specifications and also Rolls-Royce RRES 90061 Rev.0 and ASTM E3022. So you can be sure you meet all industry standards.

🎯 Handy & Lightweight

Despite its power, the MR® 96 E is lighter, smaller, and easier to handle - perfect for use in demanding conditions.



Technical Specifications

MR 96 ESL
Item Number 96 ESL (Art. 4763)
UV Lamp Risk Class According to DGZfP EM6* 3
UVA* Max. 30 Watt/m²
Light Beam Ø 140mm > 10 Watt/m²
Weight Without Batteries 64 g
Dimensions L = 120 mm
Ø = 24 mm
Wavelength (Peak) 365 nm ± 5 nm
Power Supply 1x 18650 Lithium
Operating Time Depending on the battery, min. 1.5 hours.
UV LED Lifetime** Approx. 10,000 h
Excess Heat 45 °C
IP Protection Class According to DIN EN 60529 IP67 (waterproof)

*Measured at a distance of 38 cm from the surface
**Under laboratory conditions according to manufacturer specifications

 Scope of Delivery

MR 96 E (UV LED Lamp)

Transport Case

2 pcs. Lithium-ion Batteries

USB Charger

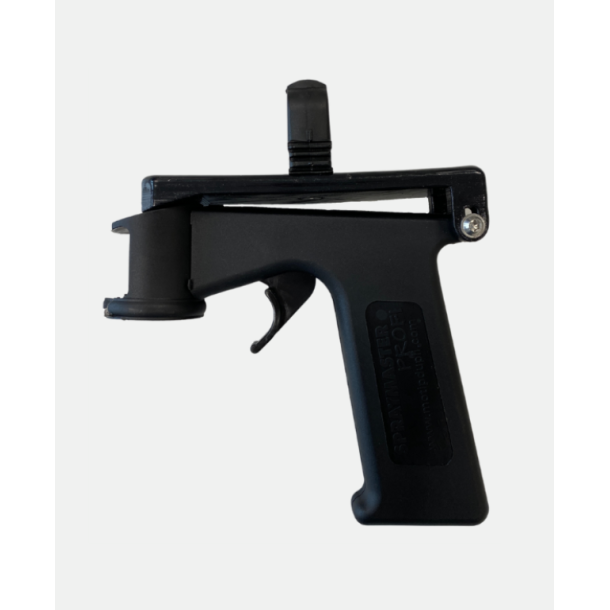

Spray Aid



Title Type Size Download
mr-96-esl_en_pi.pdf PDF 1.61MB Download
