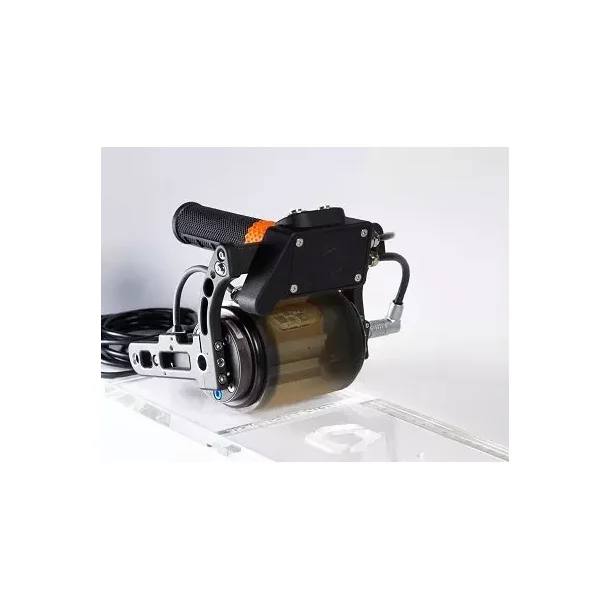

Portable Phased Array Ultrasonic Roller Probe for Your Composite Inspection Needs
Krautkrämer RotoArray comPAct is Waygate Technologies’ first instrument utilizing the new comPAct technology.
It is the industry’s first solution that combines the performance of a full phased array inspection system into a single probe, thanks to miniaturized electronics.
With Krautkrämer RotoArray comPAct, your PA inspections require less equipment and gain more flexibility. RotoArray comPAct ensures reliable and easy flaw detection with maximum portability, minimal weight, and excellent connectivity for time- and cost-effective manual phased array inspections.
Connections

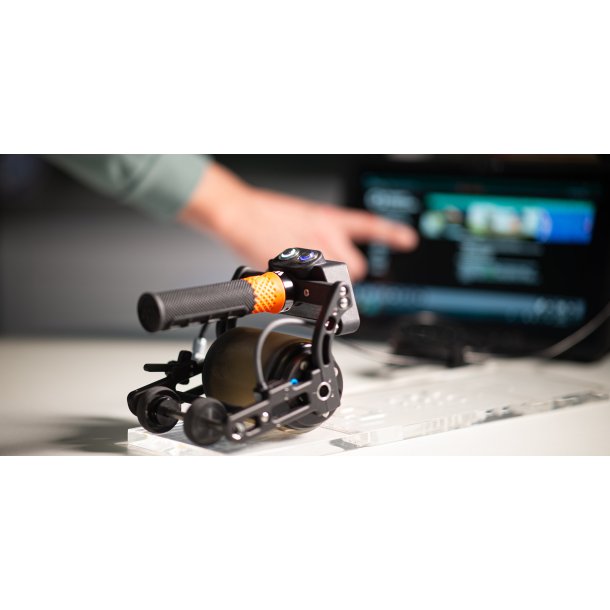

The numerous connection options for the Krautkrämer RotoArray comPAct provide faster data insights. The roller probe can easily connect to a tablet or PC via a USB port. With a Wi-Fi or cellular-enabled tablet or PC, you can connect to an available on-site network to share and store inspection data.
Applications
Krautkrämer RotoArray comPAct is designed for ergonomic, high-speed inspection of large areas, with improved Probability of Detection (POD) for inspecting composite materials in the aerospace, aeronautics, and wind energy industries.
Applications include:
- Inspection of composite materials in aircraft structures, wind turbine blades, aluminum wings and aircraft skins (wings, fuselage), helicopter blades, and complex composite castings
- Detection and sizing of delamination and disbonds
- Thickness measurements, material loss
- Detection and quantification of internal porosity
Portable and lightweight phased array ultrasonic inspection starts here
The innovative comPAct technology opens up new and versatile possibilities if you are looking for ultra-portable, ergonomic, and user-friendly solutions. You can conveniently take the Krautkrämer RotoArray comPAct with you anywhere in the field, while benefiting from smaller physical equipment, associated weight reduction, good connectivity, and lower startup costs.
Compact
Waygate Technologies has developed and integrated groundbreaking, unique technology into the well-proven RotoArray roller probe, redefining phased array inspection and making it easier and faster for everyone: comPAct.
The most cost-effective lightweight PA solution
The brand-new patented comPAct technology is now compressed to the size of half a fingernail. The miniaturized instrument electronics enable a 100x reduction in volume and a 20x reduction in power consumption compared to traditional PA instruments, allowing the instruments to be powered by a tablet or PC via a USB connection.
Minimal size and low weight provide maximum flexibility to house PA electronics in a box, directly in a scanner, or even in the PA probe itself.
comPAct paves new ways for lighter, simpler, and more cost-effective UT phased array applications.
Lower Price Level
At the same time, Krautkrämer RotoArray comPAct is introduced at a price far below common price levels. Call 44 65 22 77 or write to info@ndtshop.dk to learn more or book a demonstration.
| Technical Specifications | |
|---|---|
| Number of elements | 64 |
| Max aperture | 32 elements |
| Pulser voltage | 5 - 70 Volt |
| PRF | 50 - 3000 Hz |
| Frequency range | 5 MHz |
| Gain range | 0 - 70 dB |
| Display range | 2 - 490 mm (steel) |
| Gates | 3, 1 for IF-start |
| Probe connector | USB |
| Max power consumption | 2.5 W |
| Encoder | 1 axis |
| Operating temperature | 0 - 50 °C |
