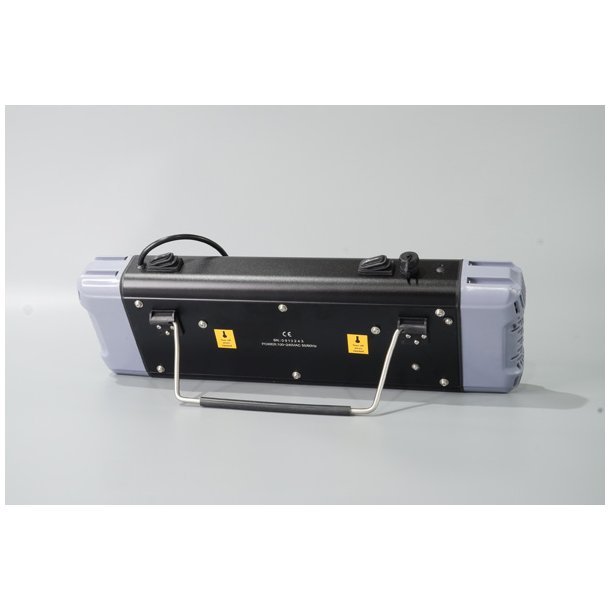

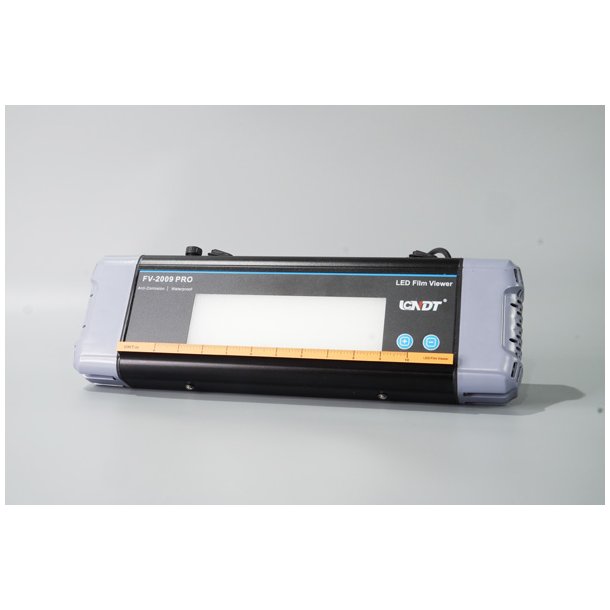

Waterproof LED Film Viewer FV-2009 PRO

 Product Characteristics

• Waterproof Type
• The enclosure of viewer is sealed
• All the components inside are also sealed
• Max. L : 120,000Cd/M2 (376,800Lux)
• Viewer window: 200 x 60mm

• Use key "+"and "-"to control the luminance(so no potentiometer any more). From 0% to 100%, there are 13 steps.
•   Long press the "+", will dim to maximum. And long press the "-", will dim to minimum.

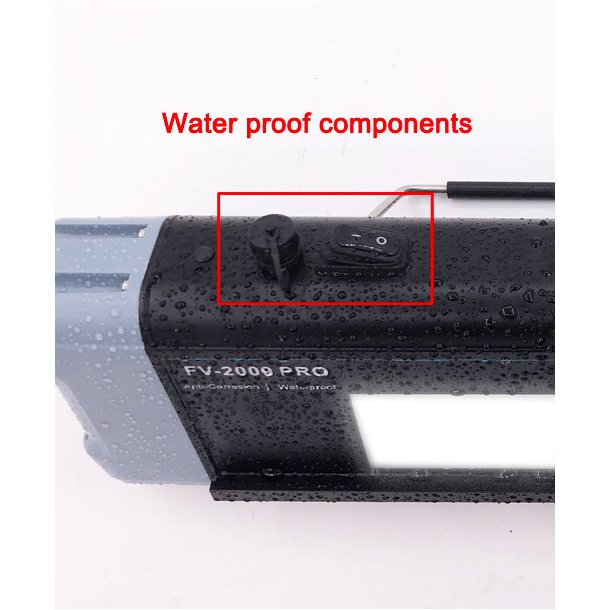

• All the connectors and switch are water proof style.
• The enclosure of viewer is sealed.
• The PCB board is sealed at all. So the electron components will no contact with corrosive air and moisture. See attached picture.
• And the LED board is coated by transparent coating. Will protect them from corrosive air and moisture effectively.

A WATERPROOF version of the popular FV-2009 Plus. The FV-2009 PRO is a fully sealed waterproof high intensity LED film viewer that meets and exceeds the specifications of its predecessor, the FV-2009 Plus. It has been designed for use in the field where exposure to moisture and other corrosive conditions are most common. The update includes an upgraded, completely sealed intensity control switch and power switch, plus a sealed connector for the step pedal. The intensity is controlled with a 13-step "+" and "-" switch, which replaces the traditional potentiometer.

Luminance distribution of the view window (Unit: Cd/m2):

Specifications
