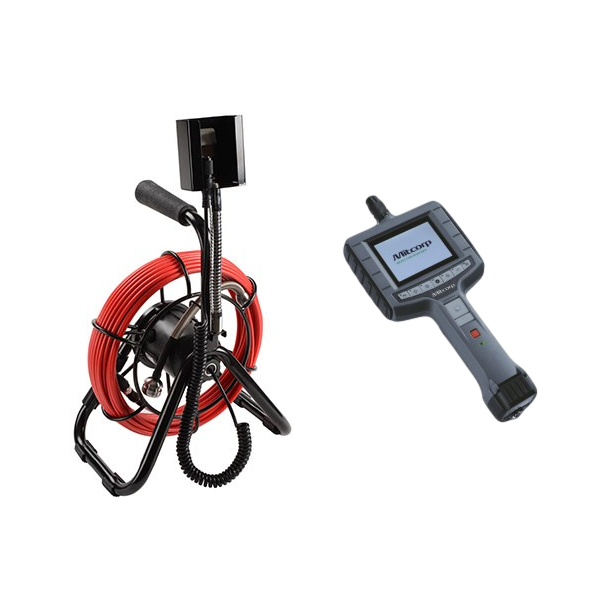

F700 Pipe System 30 meter (Incl. F700 monitor)

€ 2,654

(excl. VAT)

PIPE System is perfect for pipe inspections, air conditioning systems, building constructions etc.
The 30m cable is mounted on a lightweight reel stand that can be used both upright and lying down. It is very flexible and can handle several smooth 90-degree bends.
The camera itself has a 28mm interchangeable head with 8 powerful LED lights and a wide angle of 120 degrees.
Includes meter counter, monitor, SD card, sturdy transport case and manual.

Model/Product no.: #PR282
pcs.

Advanced ergonomically designed to meet routine and daily inspection. SKYPE communication provides real-time data sharing and diagnose.


Features

• 3.5" TFT LCD
  3.5" Extra-wide view angle and clear TFT, protected by oil and scratch resistant tempered glass.

• LED brightness/contrast adjustment
  Simply push +/- button to increase/decrease brightness and contrast

• Zoom in and mirror
  1.5X and 2X larger images and horizontal mirror for code identification

• Video record and snapshot
  Records VGA resolution (640x480 pixel) video clips and still images with instant playback review

• AV out
  Allows for TV monitor and computer interfaces

• B/W and color modes
  For your particular inspections

• Measurement mode
  For the sophisticated objects analysis

• SKYPE communications supported (optional)
  Real time data sharing and diagnosis

• 4 x AA batteries for 3 hours operation
  Quick and easy

• Insert tube options
  Front/Side Camera probe : 3.9mm, 4.5mm, 5.5mm, 8.5mm
Dual Camera Probe : 4.9mm
Two way Articulation : 6.0mm



Specs

Camera head:
  Lighting   8 LEDs (white)
  Dimeter/lenth   28 mm
  Material   Stainless steel
  Working temperature   -10ﾟC~60ﾟC
  Storage temperature   -10ﾟC~60ﾟC
  Waterproof   IP68 (10m)
  Display Resolution   640 x 480
Reel:
  Diameter   300 mm
  Waterproof   IP65
Probe:
  Diameter   6.0 mm
  Applicable pipe (Ø)   40mm ~ 100mm
  Length   22M
  Flexibility   Two 90ﾟ bends in Ø40mm pipe
