Equotip Live UCI

For price, contact us by Phone: (+45) 44 65 22 77 or Email: info@ndtvendor.com

Description
Downloads

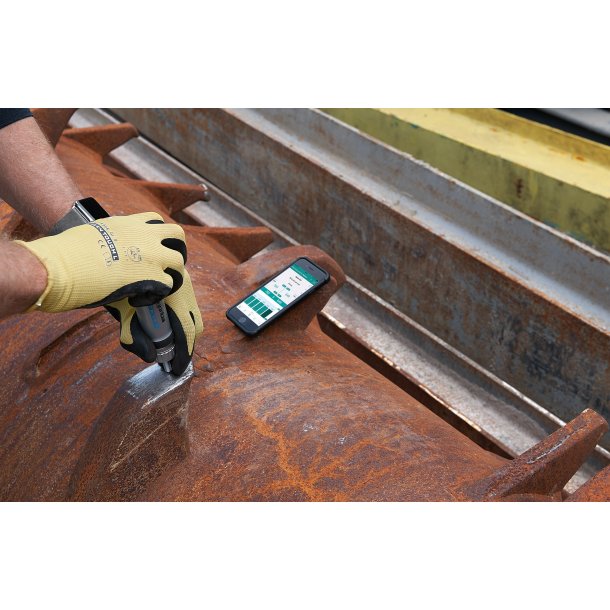

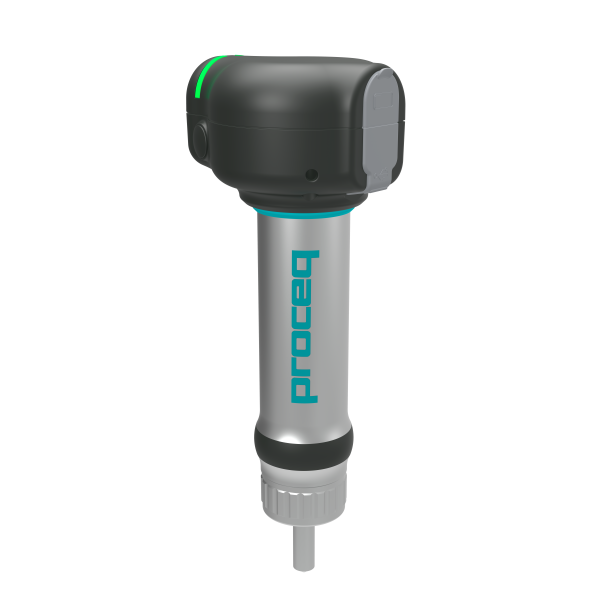

Wireless Portable Ultrasonic Contact Impedance (UCI) Hardness Tester

Unmatched versatility owed to HV1, HV5, and HV10 test loads in one wireless probe
High precision thanks to innovative and patented force-sensing technology
Enhanced productivity through a user-centric software interface

Experience the most portable and versatile UCI testing system on the market

Versatility

Advanced wireless UCI system based on innovative and patented force-sensing technology enables various test loads in one probe design.

Productivity

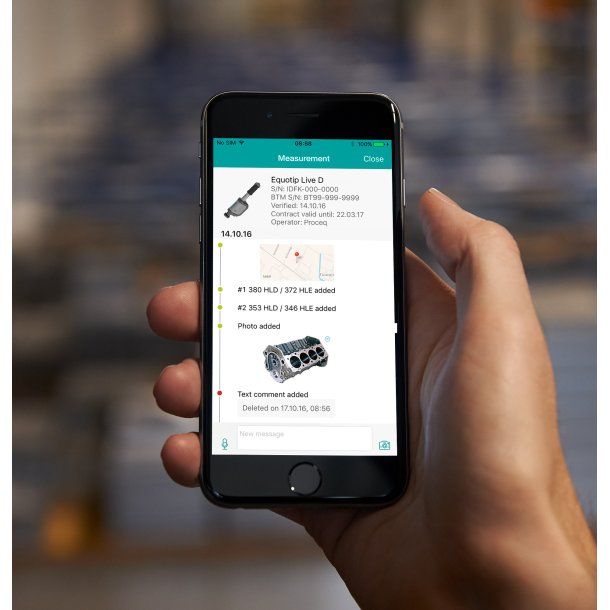

Extremely efficient user interface and enhanced logbook built into our constantly evolving Equotip app enables documentation through photos, voice comments, and annotations.

User Experience

Ultra-portable UCI probe with cloud connectivity built into modern IoT ecosystem with enabled data back-up, instant evaluation, and data sharing. Access your data from anywhere, anytime.

Display & Processing Unit (not included)
Display	Any Apple iOS device (min. iOS 13)
Instrument protection	Water, dust and debris resistance plus MIL-grade protection when used with an external case/sleeve of the customer’s choice
Memory	> 10 000 000 measurements (limited only by the iOS device’s storage)
UCI Live Operating Parameters
Connectivity	Bluetooth LE, Micro-USB for charging and service connection
Battery	1 × AA (NiMH), flight-safe
Battery lifetime	4 – 8 h, > 3 000 measurements per charge (depending on battery capacity)
Charging time	< 4 h
Power input	5 V via Micro-USB
Dimensions	77 × 62 × 185.5 mm / 3 × 2.4 × 7.3 in
Weight	234 g / 8.26 oz
Humidity (operation)	< 90 % RH, non-condensing
Operating temperature	(-)20 °C … +60 °C / 14 °F – 122 °F
Certification	CE, KC, FCC
Equotip App Features
Automatic data backup to Screening Eagle’s Workspace Histogram and table view, series statistics Automatic conversion to selected unit Probe verification assistant Custom material conversion: 1-point shift Voice read-out of measurement data Enhanced logbook with metadata (images, voice comments, annotations, geo-location) Data export to PDF and CSV Probe statistics Video tutorials
Conversion Curves Applicable for Materials
Steel and cast steel
Languages
English, Chinese, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Turkish
Regional settings	Metric and imperial units, multi-language and time-zone
Audio support	Full digital audio
Proceq Workspace Cloud Solution
Proceq Workspace	Web-based data management system with cloud backup; accessible from PC, mobile and tablets
Language support	English

Instrument – Tech Specs
Native Scale	HV (UCI)
Conversion scales	HLD, HB, HRC, HRA, HRB, HR15N, HR15T, MPA (σ₁, σ₂, σ₃)
Measurement range	20 – 2000 HV
Indenter	ISO 6507-2 compliant, 136° Vickers diamond
Impact energy / Test force	HV1 (9.8 N), HV5 (49 N), HV10 (98 N) in one probe
Accredited calibration	ISO/IEC 17025
Standard compliance	ASTM A1038 DIN 50159 GB/T 34205
Guidelines	ASME CRTD-91 ASTM A370 DGZfP Guideline MC 1 VDI / VDE Guideline 2616 Paper 1
Conversion standards	ASTM E140 ISO 18265 Proceq’s own conversion curves
Measurement resolution	1 HV (UCI), 0.1 HRC
Measuring accuracy	± 2 %
Measurement deviation (E)	Lower than DIN 50159 & GB/T 34205
Coefficient of variation (R)	Lower than DIN 50159 & GB/T 34205
Weight	234 g / 8.26 oz
Dimensions	77 × 62 × 185.5 mm / 3 × 2.4 × 7.3 in

Standards & Guidelines

ASTM A 1038
ASTM A 370
ASTM E 140
DIN 50159
GB/T 34205-2017
ISO 18265
ASME CRTD-91
DGZfP Guideline MC 1
VDI / VDE Guideline 2616 Paper 1

Title	Type	Size	Download
Equotip_Application_Booklet_Portable_Hardness_Testing_Using_Leeb_Portable_Rockwell_UCI.pdf	PDF	16.72MB	Download
whitepaper-UCI_EN.pdf	PDF	335.56KB	Download
Equotip-Family-Cue-Cards.pdf	PDF	4.96MB	Download
