Krautkrämer PAXYS

For price, contact us by Phone: (+45) 44 65 22 77 or Email: info@ndtvendor.com



Model/Product no.: #PAXYS

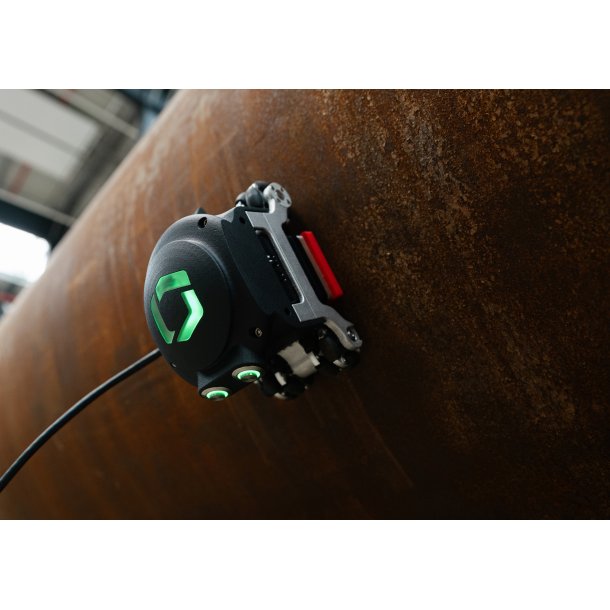

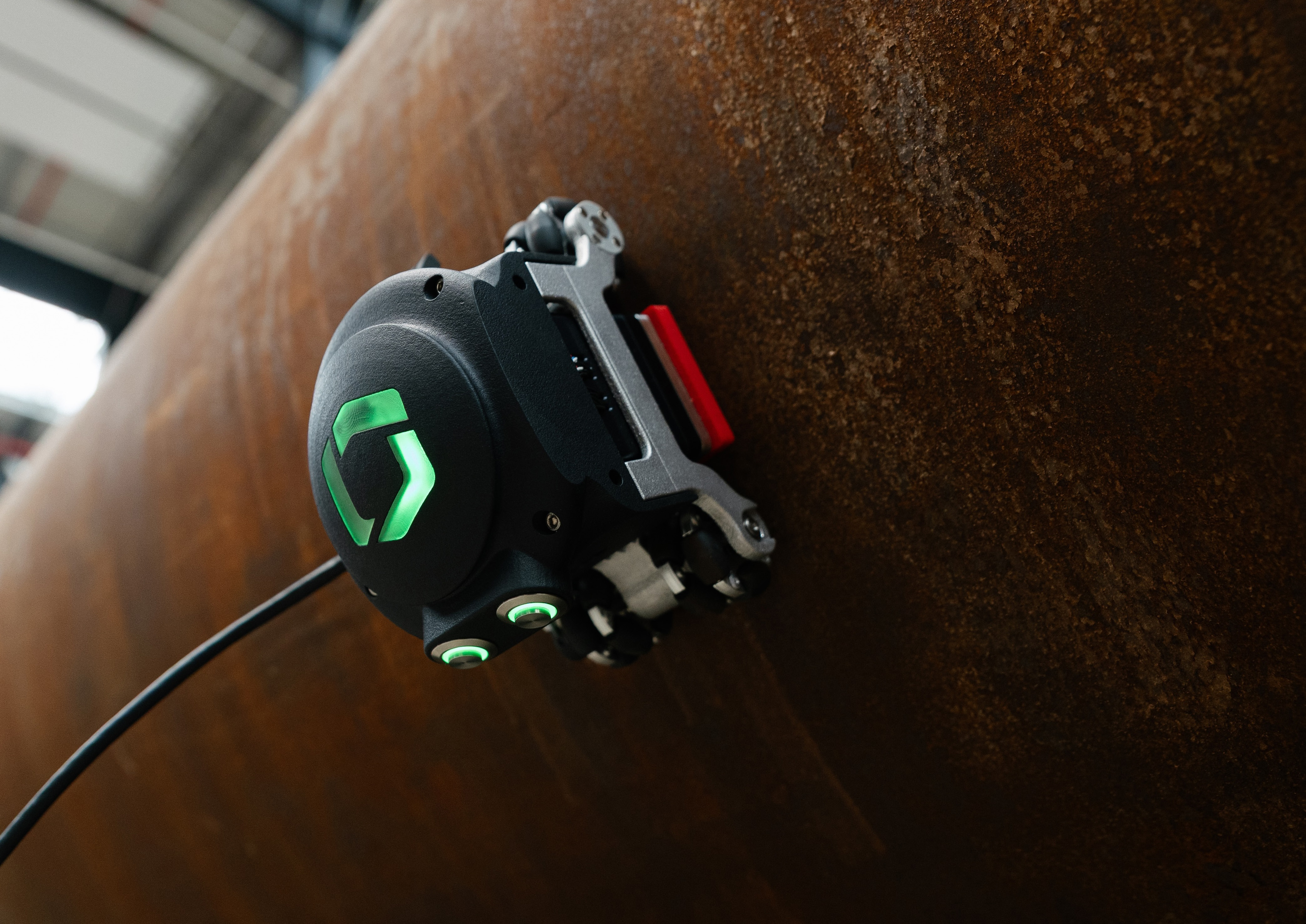

Ultra-portable phased array scanner for corrosion mapping

Krautkrämer PAXYS from Waygate Technologies is designed for fast, repeatable corrosion and wall-thickness mapping. It combines X/Y encoding, phased array technology, and a sub-1 kg scanner design in a system for efficient single-person inspection.

X/YDual-axis encoding
< 1 kgUltra-portable scanner design
48 mmProbe width
IP65Designed for demanding field environments

Faster, more repeatable NDT inspections

PAXYS provides a practical transition from point-by-point manual UT measurements to an encoded scanner workflow. X/Y position tracking records movement in both axes and provides a more consistent inspection dataset.

  • Reduced operator dependence in probe placement and coupling
  • More consistent thickness data and fewer re-scans
  • Clear C-scan maps for documenting corrosion and wall loss

Field-ready for one operator

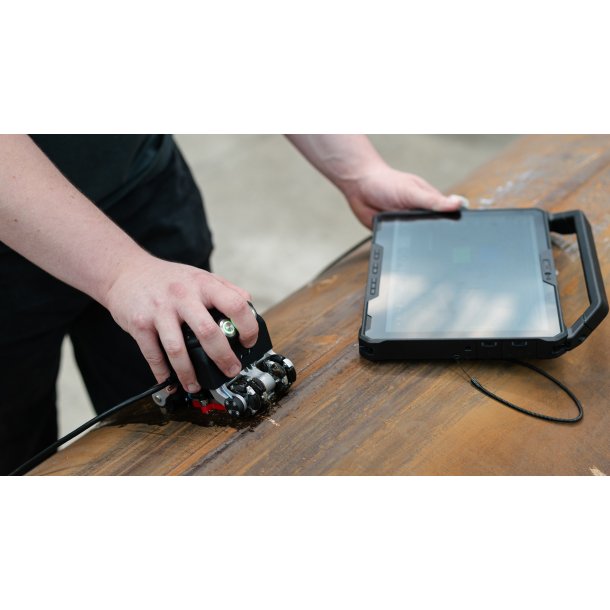

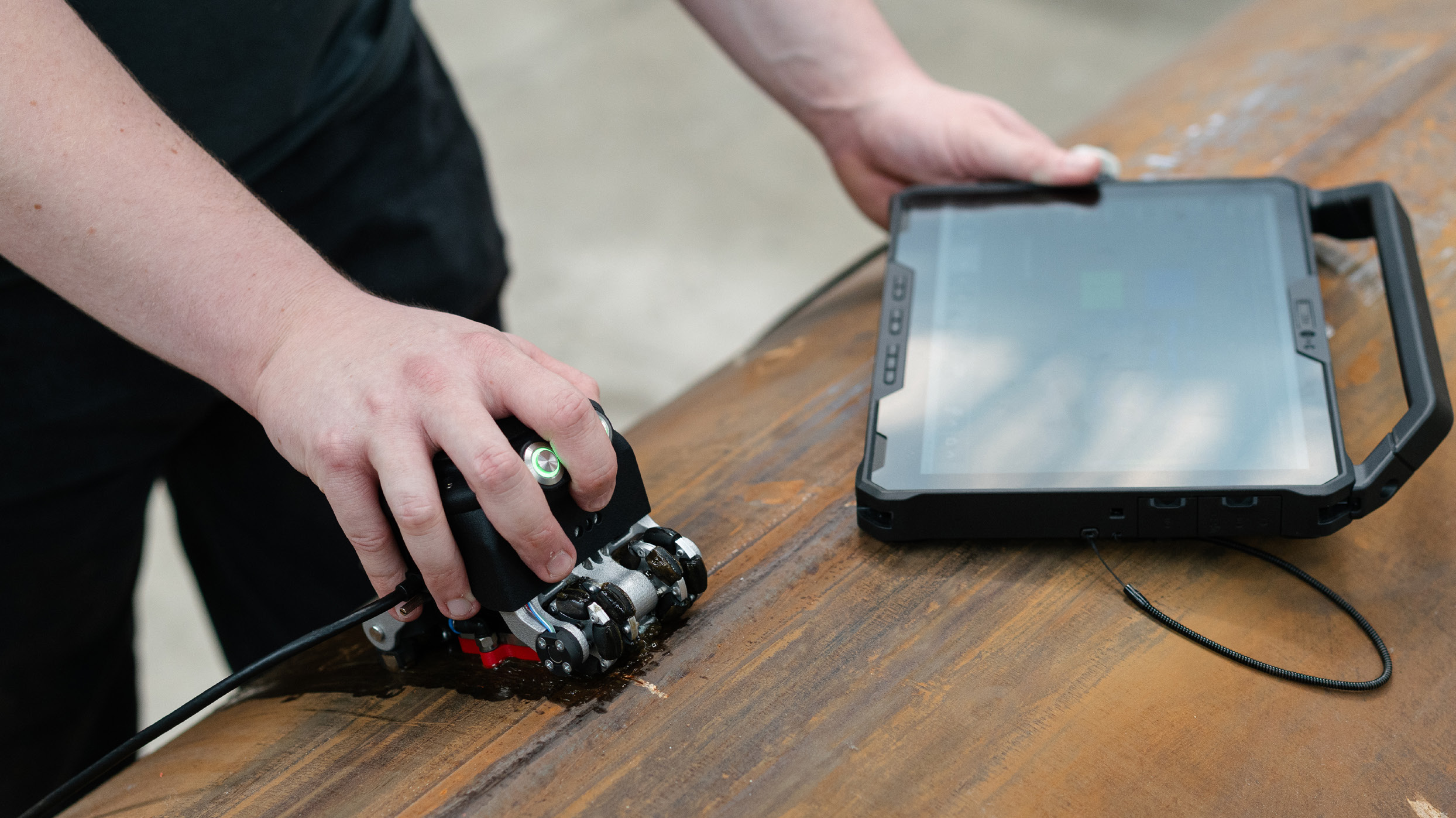

The scanner, water-feed pressure bottle, and a lightweight Windows tablet can fit into a single backpack, making the system well suited to work where portability and simple deployment are critical.

  • Suitable for rope access, confined spaces, and pipe inspections in trenches
  • Magnetic wear shoes for vertical and inverted steel surfaces

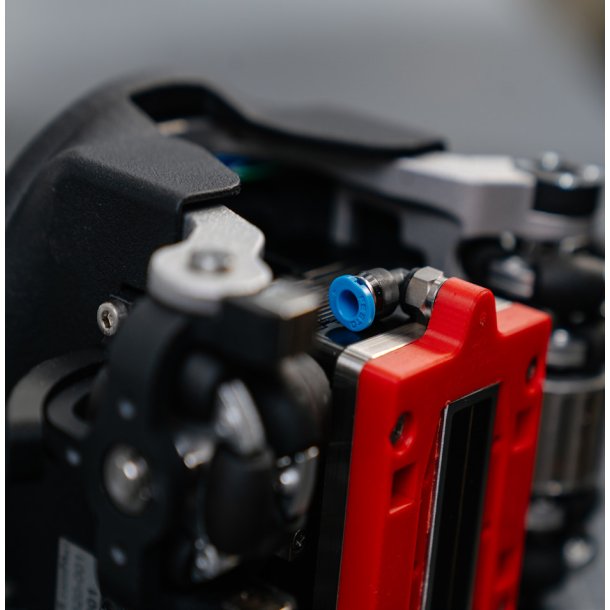

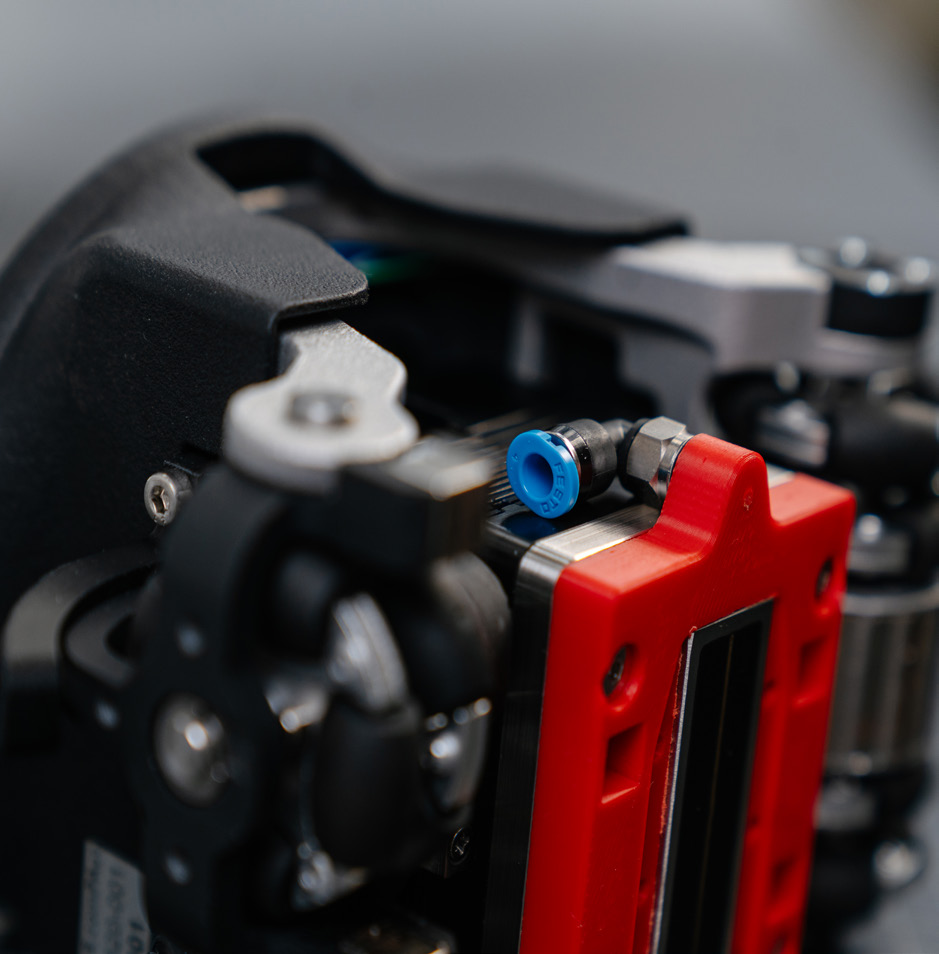

  • Wear shoes with couplant channels and several radii for flat and curved components

Connectivity and a future-ready platform

PAXYS connects through standard USB and works with standard Windows 11 tablets, laptops, and desktops without proprietary hardware using Acquire Software. Wi-Fi or cellular connectivity on the connected computer can support data collection, storage, and analysis on customer networks, while a commercial tablet can be used to capture on-site photos for the final report.

Its modular architecture and interchangeable probe modules are designed to extend the platform across additional ultrasonic inspection applications over time.

comPAct technology

Patented comPAct technology significantly miniaturizes the PA electronics. Compared with traditional PA instruments, it reduces PA-electronics volume and weight by up to 100 times and decreases power consumption by 20 times.

The low power demand allows PAXYS to be powered through a standard USB connection and is a key part of the scanner's compact design.

Applications

  • Corrosion and wall-thickness mapping and reporting for oil and gas assets
  • Turnaround, shutdown, and outage inspection work
  • Routine maintenance inspections
  • Rope access and confined-space inspections
  • Pipe inspections in trenches and other difficult-access locations

Standard package contents

  • Krautkrämer PAXYS Scanner Platform
  • DA-5M-32-1.5p Array Probe Module
  • Acquire Software Platform
  • Five wear shoes in different radii
  • Pressure bottle for water feed

Technical specifications

Krautkrämer PAXYS
Dimensions (L x W x H) 127 x 127 x 101.6 mm
Total weight < 1 kg
Probe module Dual Array, 5 MHz · 32 elements · 1.5 mm pitch
Probe width 48 mm
Power supply 5 V, 2.5 W via standard USB
Encoding X/Y dual-axis
IP rating Designed to IP65
Operating temperature -20 °C to +50 °C
Wear shoe radii 101.6 / 152.4 / 203.2 / 254 / 304.8 mm · integrated couplant channels
Standard compliance ISO 18563
Operating system Windows 11
Software platform Acquire Software
Data connection USB port
Call +45 44 65 22 77 or email info@ndtvendor.com to learn more or arrange a demonstration.
