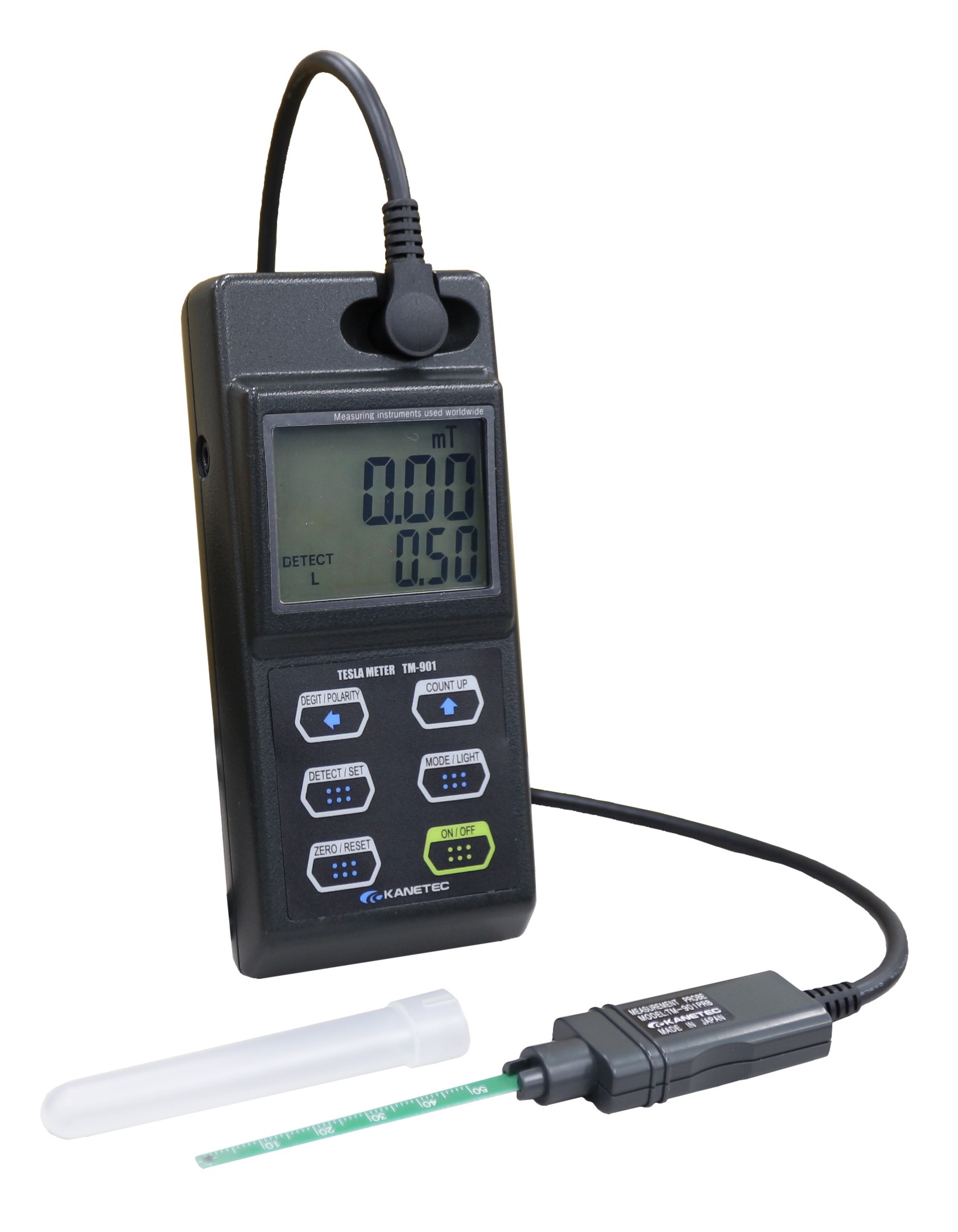

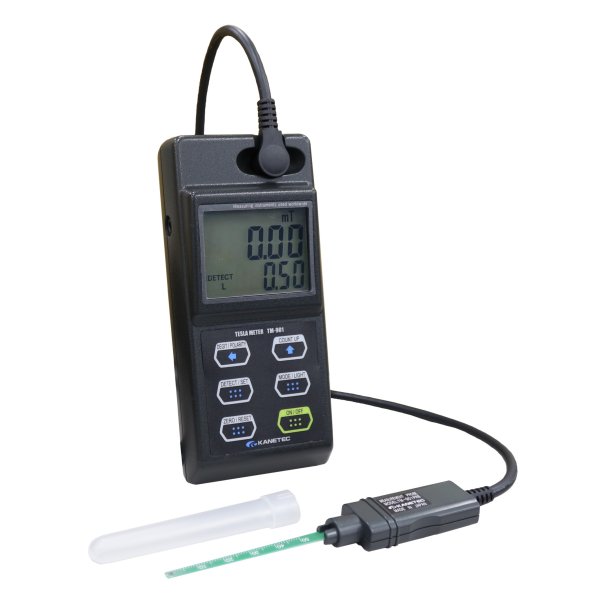

Tesla Meter TM-901EXP

€ 1,014

(excl. VAT)

Tesla Meter for residual magnetic measurement of machined workpieces, demagenetized objects and press-formed products.
Measuring range 0 - 3000.0mT and 0 - 30000G

Model/Product no.: TM-901EXP

pcs.

Description
Downloads

Application

Residual magnetic measurement of machined workpieces, demagenetized things and press-formed products.
Magnetic flux density control of sanitary magnets
Measurement of the characteristics or magnetic materials
Confirmation of magnetization level of magnetic materials
Magnetic flux density measurement of magnetic tools
Inspection and development of AC magnetic applied products, etc.

Features

Measurement range is 0-3000.0mT[0-30000G](DC).
"REAL" and "PEAK HOLD" values of magnetic flux density are displayed at the same time.
The new monitor comes with a light it can be tuned ON and OFF manually.

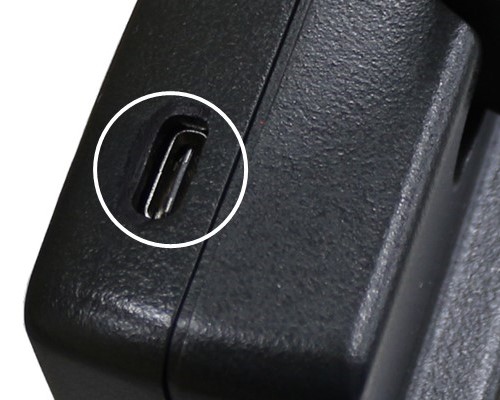

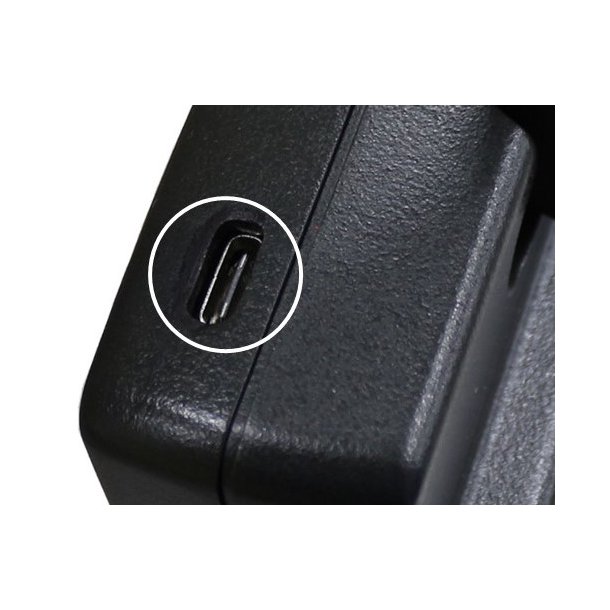

USB cable connection port for digital output is Type C.
"Detection Mode":The magnetic flux density measurements range can be set by user. Including a buzzing sound when in range.
*Buzzing sound is for DC only. AC is not supported.
TM-901PRB and TM-901AXL can be used with conventional models such as TM-501,TM-601,TM-701,TM-801.

Technical Specifications

Model	TM-901 EXP
Object to detect	DC magnetic flux density AC magnetic flux density Polarities (N,S) 40-500Hz
Unit of measurement	mT/G selection
Measurement range	0-3000.0mT
	Measjrement moede	Measuring range	Resolution	Indication accuracy
Measurement mode	DC x 1	0-2000.0mT	0.1 mT	±(5% of rdg. + 3digit)
Measuring range	DC x 1	200.1-3000.0mT	1 mT	±(5% of rdg. + 10digit)
Resolution	DC x 10	0-3000.0mT	0.01 mT	±(3% of rdg. + 5digit)
indication accuracy	AC*	0-150.0mT	0.01 mT	±(5% of rdg. + 20digit)
		150.1-300.0mT	0.1 mT
		300.1-1500.0mT	1 mT

Function	Zero reset	Polarity judgment
	Max. detect value hold	Auto power off(Cancellable)
Output	Digital output(USB)/Analog output
Indication	Detected value	Digital
	Polarity	Alohabets (N/S)
Operation temperature	0±40℃ (104°F)
Power source	.Battery:Size AA (1.5V)x4poeces
	.External power source 5-6 VDC (AC adapter/USB feed)
Dimensions	143(5.62in)mm high x64(2.51in)mm wide x30(1.41in)mm thick
Mass	Approx. 250g(0.62lb) (batteries Á probe included)
Accessories	Probe, batteries, carrying case
Optional	Axial probe (TM-801 AXL)
	Reference magnetic field (TM-SMF,TM-AMF)

*The measuring range is automatically selected.
Note: This meter is not designed for measurement of electromagnetic waves.
