F1100 Pipe System 30 meter (Incl. F1100 monitor)

This product is no longer available and cannot be ordered

F1100 is no longer available, instead look at x600.

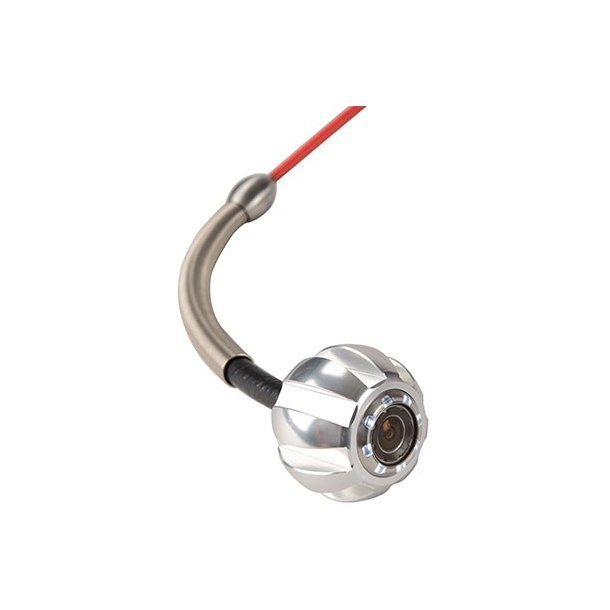

The PIPE system is perfect for pipe inspections, air conditioning systems, building structures, etc. The 30 m cable is mounted on a lightweight rewoundable reel that can be used both upright and lying down. It is highly flexible and can handle several gentle 90-degree bends. The camera itself has a 28 mm interchangeable head with 8 powerful LED lights and a 120-degree wide-angle lens. Supplied incl. meter counter, monitor, SD card, charger, robust transport case and manual.

Rugged and Robust - Great for indoor and outdoor inspection
Equipped with IP57 protection, this set not only improves the image quality, but also provides the convenience for the all purpose pipe inspections.


• All purpose pipe inspection
  Equipped with IP57 main system and rock solid reel stand not only improves the image quality, but also provides the convenience and flexibility for your pipe inspection

• Rugged and Robust
  Great for indoor and outdoor inspection

• Meter for m/ft counts
  Built-in meter to measure the approximate distance from the starting point

• Flexibility
  Pass through four 90º sharp curves



F1000 Main System:
  System dimension   240x154x47 mm
  System Weight   1.3kg（2.86lb）
  Display   7" TFT LCD（800x480）
  Power   Rechargable Li battery 3.7V, Power supply AC 100-240V, 50-60Hz, Power Consumption DC5.5V 1.8A
  Rechargeable Battery   Non interchangeable lasts 5 hours/3hours charge to full
  Dust and water protection   IP57 resistant
  Drop test   1m
  AV out   NTSC & PAL
  Video / Photo file format   .avi / .jpg
  Video / Photo resolution   640x480
  Working temperature   0ºC~60 ºC
  Storage temperature   0ºC~60 ºC


​

PIPE SYSTEM :
  Camera head lighting   8 white LEDs
  Camera Diameter   28mm
  Camera material   Stainless steel
  Working temperature   -10ºC~60 ºC
  Reel Diameter   300mm
  Probe Diameter   6.0mm
  Probe Applicable pipe   40mm~100mm
  Probe length   30m
