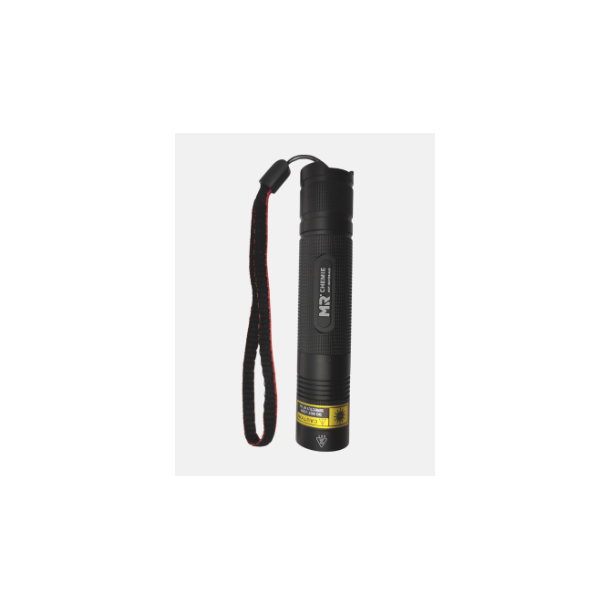

MR 96 E UV Lamp 365nm certificate included

€ 258

(excl. VAT)

Model/Product no.: #MR96E
pcs.

Product features

  • UV LED lamp with ergonomic spray handle (Art. 4763)

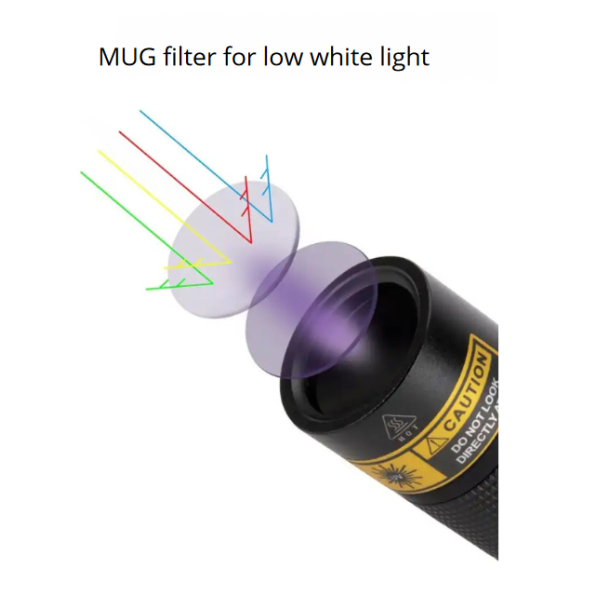

  • White light <5 lux thanks to MUG filter
  • Enables fatigue-free spraying
  • Easy to use and controlled dosing
  • One-year warranty
  • Includes UV LED
  • Compatible with 96 DSL spray handle
  • Certificate included

🌟 Significantly more power

Our predecessor models MR® 96 D and MR® 96 DSL are a thing of the past! These new lamps offer you a significant increase in power! At a distance of 38 cm, a 140 mm light beam has an output of >10 watts.

📏 Standards met

Our new models comply with the current specifications as well as Rolls-Royce RRES 90061 Rev.0 and ASTM E3022. So you can be sure that you meet all industry standards.

🎯 Handy & lightweight

Despite its power, the MR® 96 E is lighter, smaller and easier to handle - perfect for use in demanding conditions.



Technical specifications

MR 96E
Article number 96E (Art. 4762)
UV lamp risk class according to DGZfP EM6* 3
UVA* Max. 30 W/m²
Light beam Ø 140mm > 10 W/m²
Weight without batteries 64 g
Dimensions L = 120 mm
Ø = 24 mm
Wavelength (Peak) 365 nm ± 5 nm
Power supply 1x 18650 Lithium
Operating time Depending on the battery, min. 1.5 hours.
UV LED service life** approx. 10,000 h
Excess heat 45 °C
IP protection class according to DIN EN 60529 IP67 (waterproof)

*measured at a distance of 38 cm from the surface
**under laboratory conditions according to the manufacturer's instructions

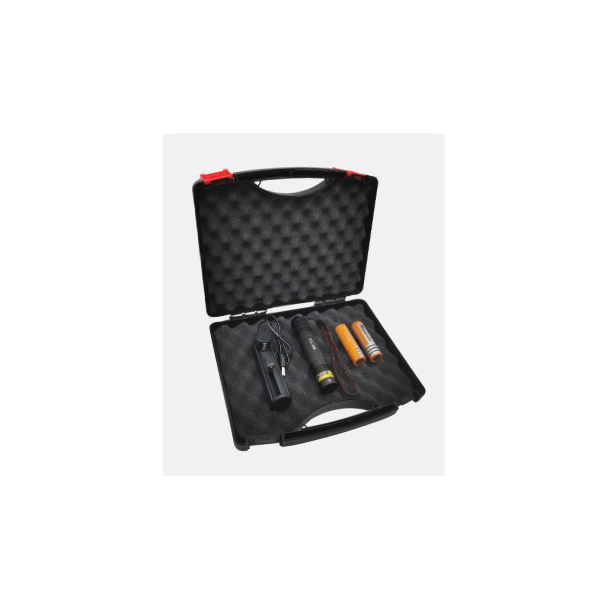

 Scope of delivery



MR 96 E (UV LED lamp)



Transport case

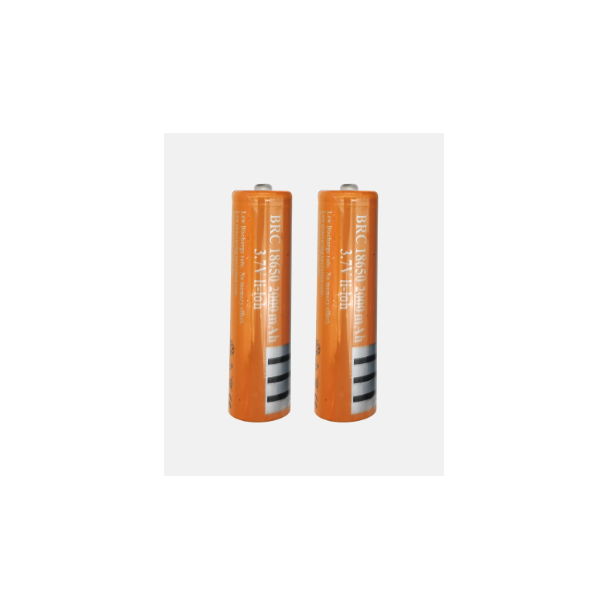

2 pcs. lithium-ion batteries

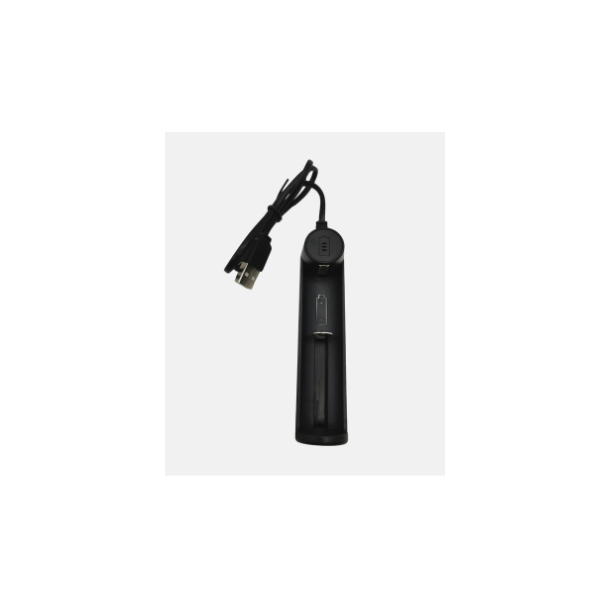

USB charger
