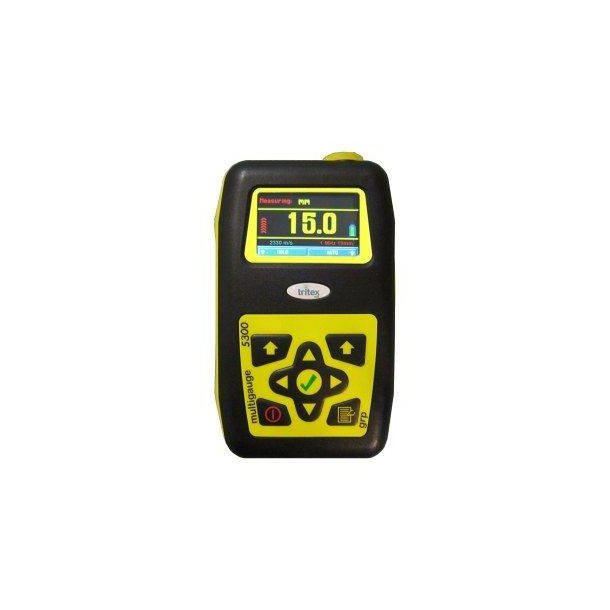

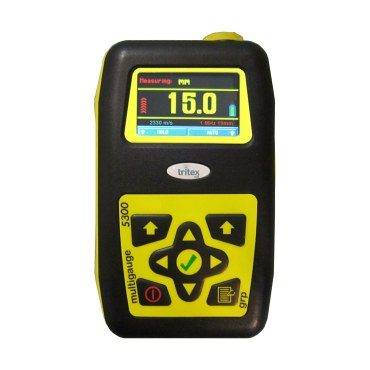

Multigauge 5300 GRP Thickness Gauge

€ 2,062

(excl. VAT)



Model/Product no.: 53-5300
pcs.

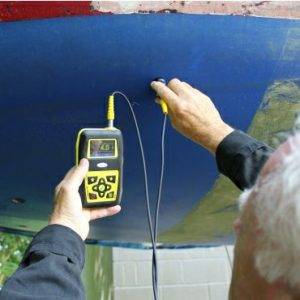

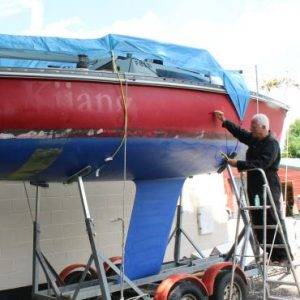

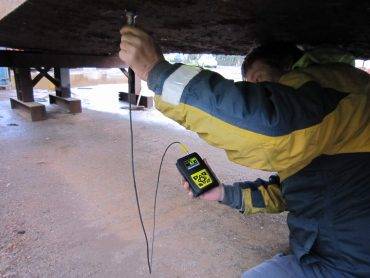

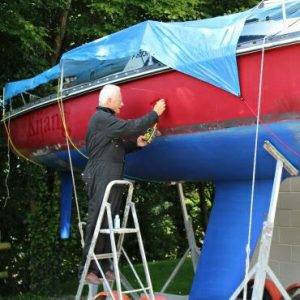

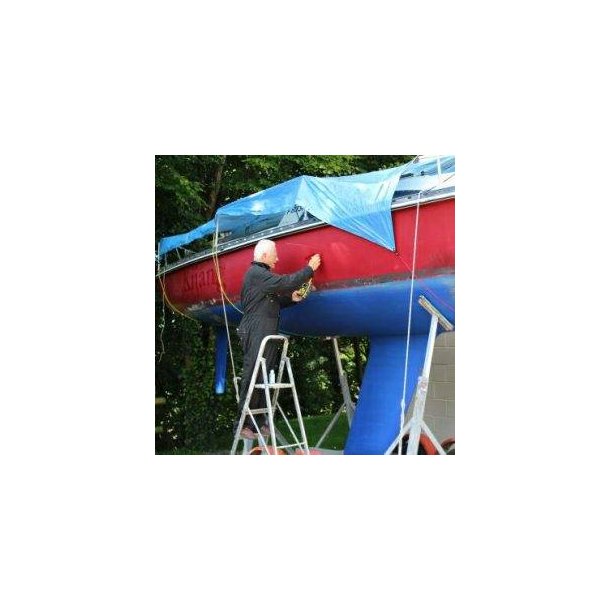

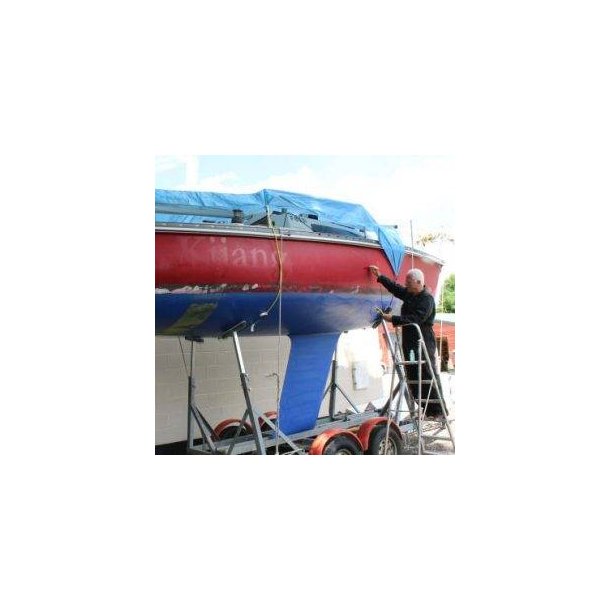

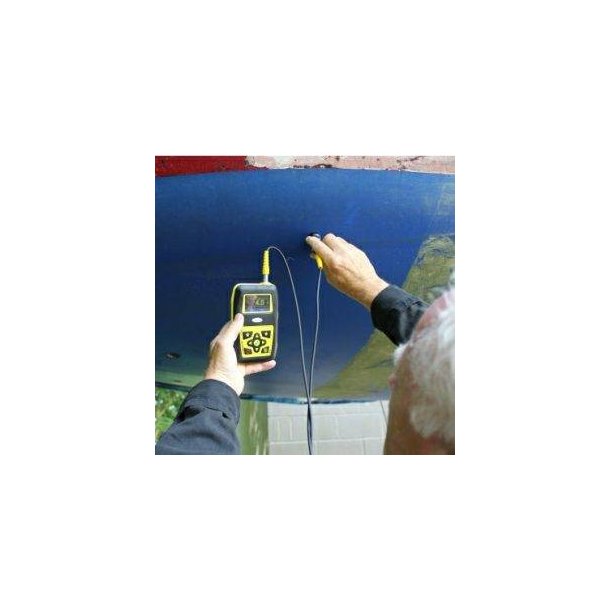

The Multigauge 5300 GRP thickness gauge is a simple, robust ultrasonic thickness gauge designed to check the condition of Glass Reinforced Plastic (GRP) or Engineering Plastics. It can also be used on uncoated metal. The easy to use keypad allows operator interface, whilst the bright colour LCD display can be used in all light conditions.

The moulded soft rubber surround feels comfortable, looks good and provides extra protection against knocks and scrapes. All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance.



FEATURES:

  •     Measures GRP or all types of engineering plastic.
  •     Large colour LCD display giving user information.
  •     No zeroing required.
  •     Single crystal hard faced probe.
  •     Easy calibration with menu driven buttons.
  •     Intelligent Probe Recognition (IPR).
  •     Echo strength indicator.
  •     Datalogging version with wireless data transmission.
  •     3 year warranty.
  •     Free calibration for the life of the gauge.

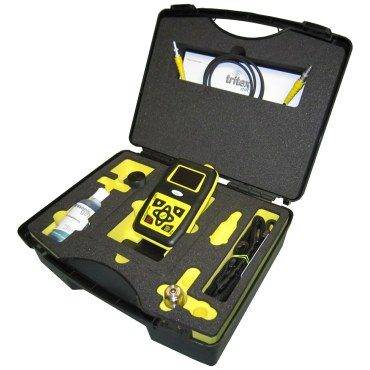

KIT CONTENTS:

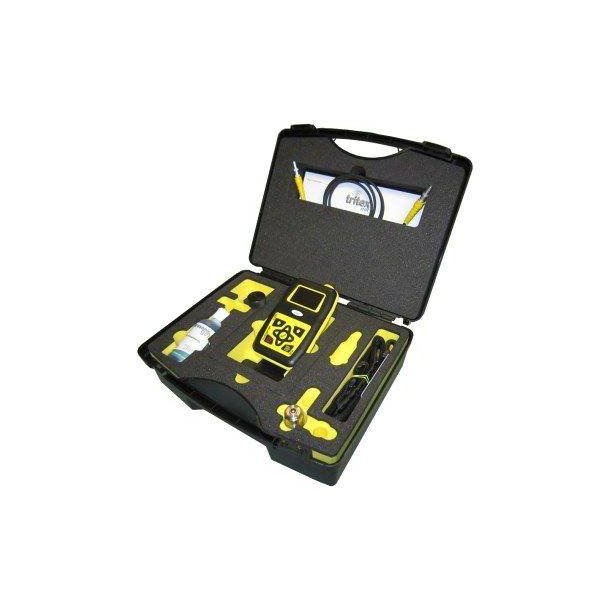

  • Multigauge 5300 GRP thickness gauge, hard faced probe, probe lead, ultrasonic gel, 15mm test block, batteries, manual, calibration certificate, carry case.
  • Options:
  • Protective leather case.





SPECIFICATION:
Sound Velocity Range: From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs)
Probes: Single crystal hard faced – 1 MHz
Measurement Range: Engineering Plastic: 2 – 300 mm (0.08” – 11.8”) depending on material.
GRP: 2 – 12 mm (0.080” to 0.5”) depending on GRP.
Probe Sizes: 19 mm (0.75”)
Measurement Mode: Single Echo / Echo – Echo
Resolution: 0.1 mm (0.005”)
Accuracy: ± 0.1 mm (0.005”)
Display: Colour LCD
Batteries: 3 × disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCd
Battery Life: Up to 50 hours continuous use using alkaline batteries
Gauge Dimensions: 147 mm × 90 mm × 28 mm (5.75” × 3.5” × 1”)
Gauge Weight: 325 g (11.5 ounces) including batteries
Environmental: Case rated to IP65, RoHS and WEEE compliant
Operating Temp: -10°C to +50°C (14°F to 122°F)
Storage Temp: -10°C to +60°C (14°F to 140°F)





Title Type Size Download
Multigauge-Surface.pdf PDF 1.71MB Download
