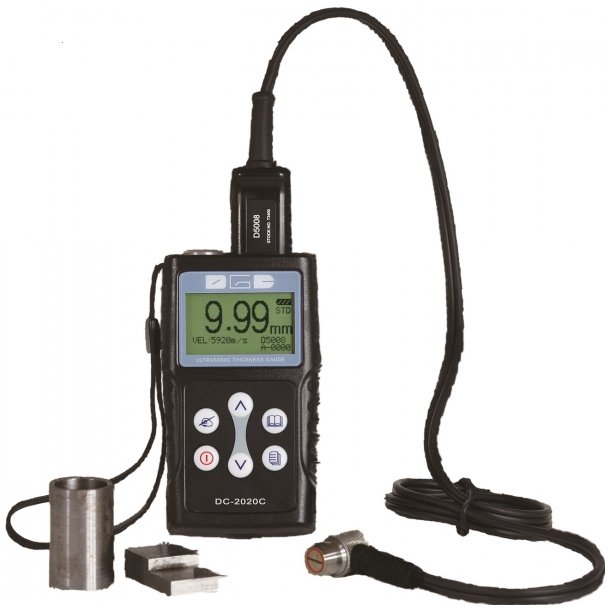

DC2020C Thickness gauge w/ Datalogger

€ 699

(excl. VAT)

Model/Product no.: DC2020C
pcs.
  • Quality
  • Great prices
  • Personal customer care

- Pocket size, easy to operate
- Auto probe zero calibration
- Auto probe identify
- Measuring range: 0.65-400mm
- Suitable for various materials such as steel, stainless steel, aluminum, glass, polystyrene, polyethylene
- Auto/Manual gain adjustable
- USB output (DC2020C)
- Standard 5.0MHz tranducer included, optional transducer: 7.5MHz, 2.0MHz, 5.0MHz high temperature, 10MHz
- 9 material velocities are stored for selection or input new velocity
- Display resolution 0.1mm/0.01mm
- Memory of 5000 readings with location number (DC2020C only)

Download usermanual:  DC2000CEN_MAN.pdf



DC2000C

DC2020C

Display: 128 x 64 with backlight

Measuring Range:0.65-400mm(depends on probe-material combination

Velocity Rate: 1000 – 9999m/s, 9 material velocities are stored for selection, or input the new velocity manually

Resolution: 0.1mm/ 0.01mm selectable

Measuring units: mm/inch

Material work piece: Glass, Glass Bottle, Polystyrene,  Polyethylene, Steel, Alloy steel, Stainless Steel, Aluminum etc.

Accuracy: ±0.04mm(when thickness<9.99mm)

         ±(0.1% thickness+0.04)mm (when thickness =10~99.9mm)

         ±0.3% thickness mm (when thickness>100mm)

Average mode: 2~9 times average measurement

- -

Limit setting: with Low-High indication and alarm

- -

Memory: 5000 readings with location number

- -

Memory: 5000 readings with location number

- -

Data output: USB to PC

Temperature of work piece surface: -15℃ to +350℃

Power supply: 2 Pcs AAA dry cell, work 48 Hours continuously (without backlight)

Dimensions and weight : 115 x 64 x 27mm, 220g including batteries

Title Type Size Download
DC2020CEN_MAN.pdf PDF 488.76KB Download
