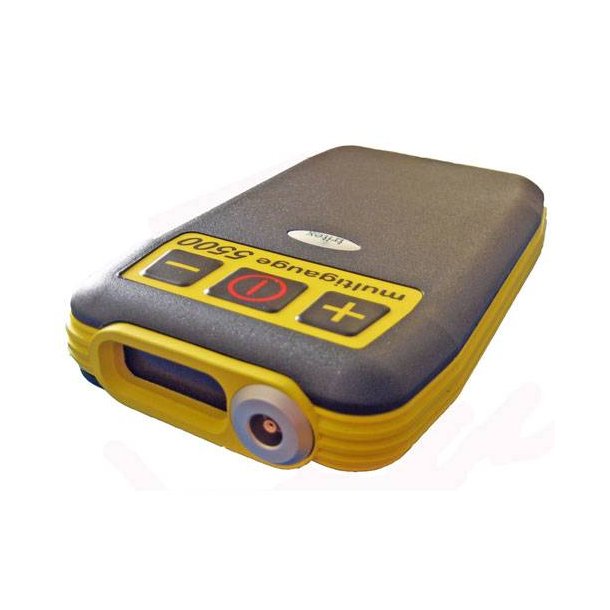

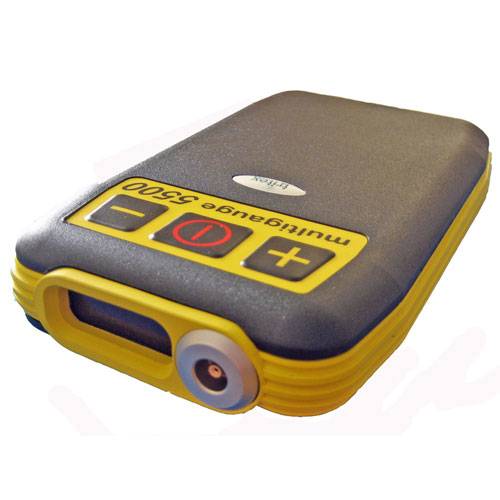

The Multigauge 5500 metal thickness tester has been designed for hands free use when climbing on staging, scaffolding, ladders or when accessing by rope.

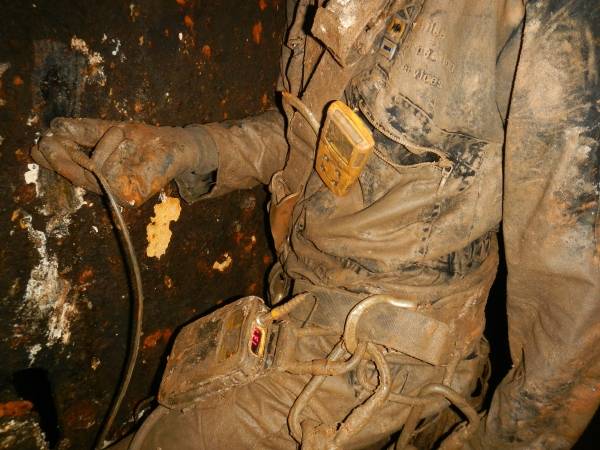

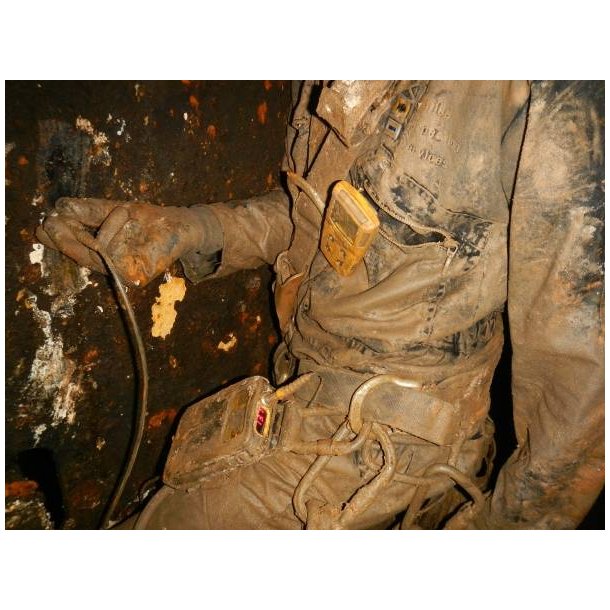

Whether it’s onboard a ship, on large storage tanks, climbing on top of a road tanker or carrying out inspections underneath a bridge, the 5500 will measure the thickness with ease. The gauge uses multiple echo to ignore coatings up to 6mm thick. It can be mounted onto a waist belt or chest harness when using rope access. The top display ensures the measurements are clearly visible, even in difficult gauging and lighting conditions. A protective leather case is also available.
FEATURES:
- Ignores coatings up to 6mm thick using multiple echo and up to 20 mm with Coating Plus+ selected
- Automatic Measurement Verification (AMVS)
- Intelligent Probe Recognition (IPR)

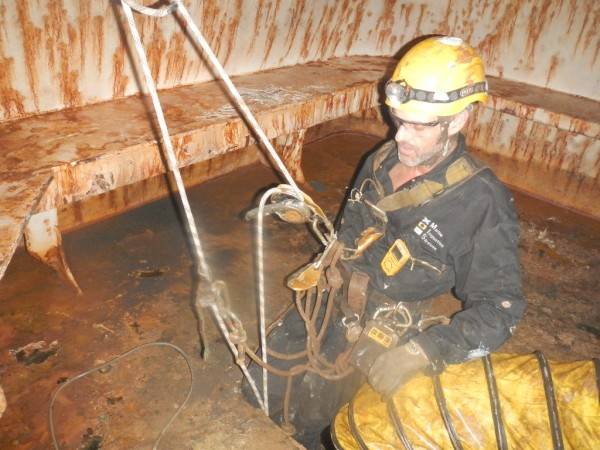

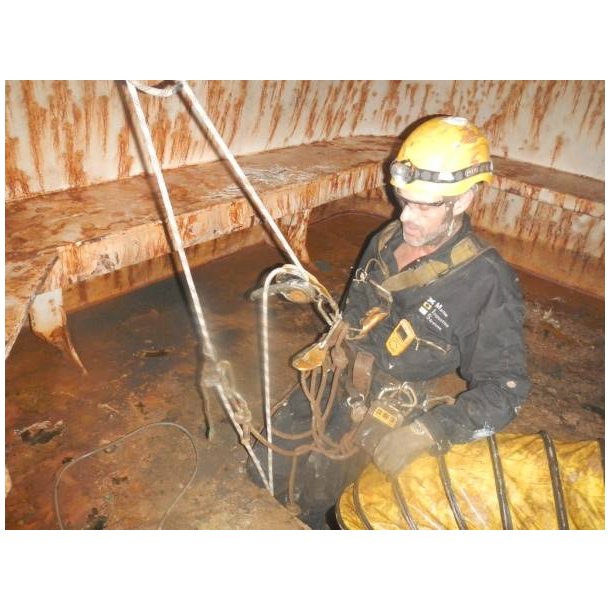

- Ideal for rope access applications
- Easy to use
- Large LED display for good visibility in low light conditions
- Easy calibration with menu driven buttons
- Rugged, durable and robust
- Designed for hands free use
- No zeroing required

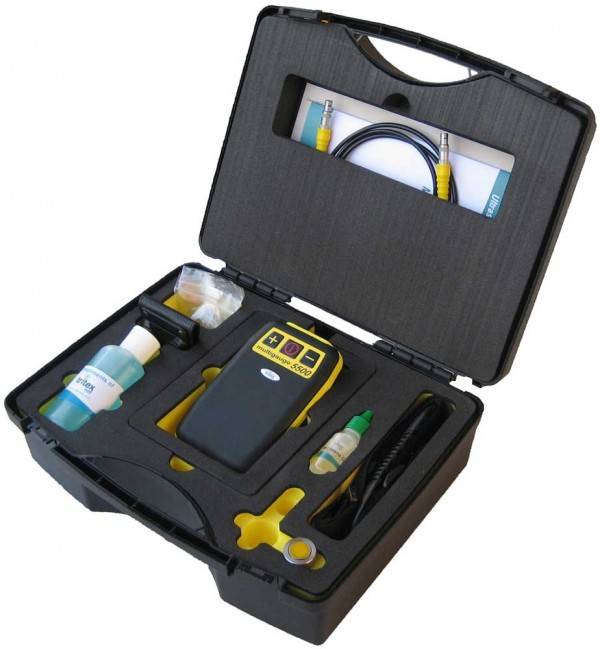

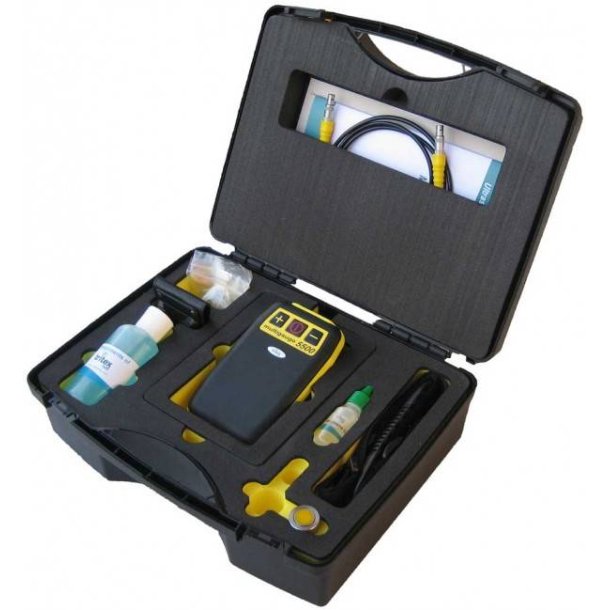

KIT CONTENTS:
- Multigauge 5500 metal thickness tester
- Probe
- Probe lead
- Spare membranes
- Membrane oil
- Ultrasonic gel
- 15mm test block
- Membrane key
- Batteries
- Manual
- Calibration certificate
- Carry case
- Belt clip.
Options:

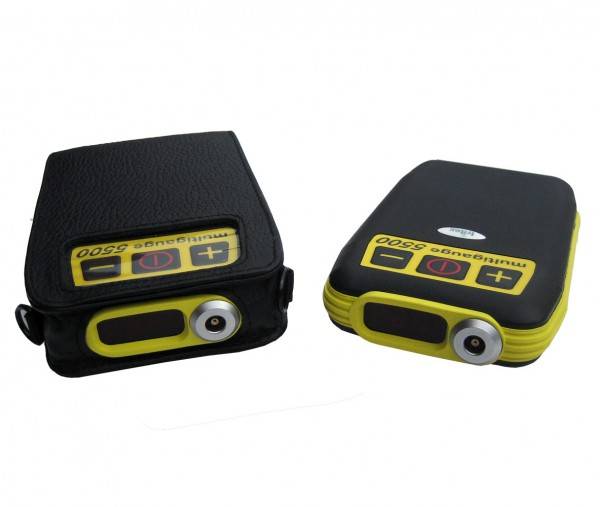

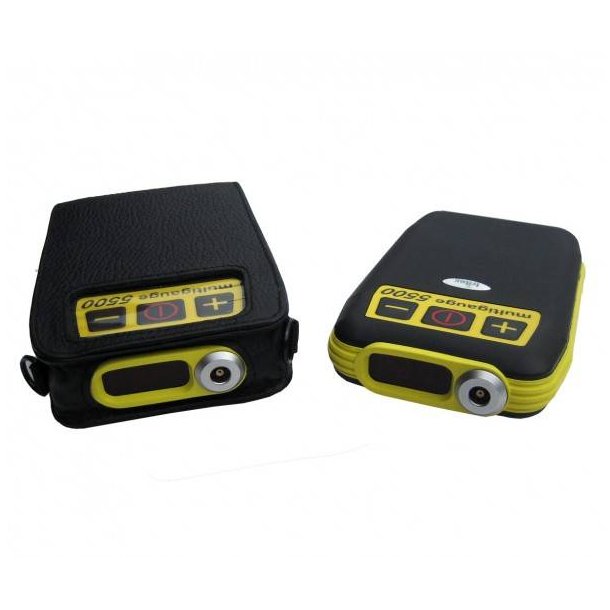

Protective leather case.
| SPECIFICATION: | |
|---|---|
| Sound Velocity Range: | From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs) |
| Probes: | Single crystal soft faced - 2.25 MHz, 3.5 MHz & 5 MHz |
| Measurement Range: | 1 - 250 mm (0.04” - 10”) depending on probe used |
| Probe Sizes: | 6 mm (0.25”), 13 mm (0.5”) & 19 mm (0.75”) |
| Measurement Mode: | Multiple Echo |
| Resolution: | 0.1 mm (0.005”) or 0.05 mm (0.002”) |
| Accuracy: | ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”) |
| Display: | Red 4 character 7 segment LED |
| Coatings Range: | Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)* |
| Batteries: | 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCd |
| Battery Life: | Up to 50 hours continuous use using alkaline batteries |
| Gauge Dimensions: | 147 mm x 90 mm x 28 mm (5.75” x 3.5” x 1”) |
| Gauge Weight: | 320 g (11.3 ounces) including batteries |
| Environmental: | Case rated to IP65, RoHS and WEEE compliant |
| Operating Temp: | -10°C to +50°C (14°F to 122°F) |
| Storage Temp: | -10°C to +60°C (14°F to 140°F) |
| Title | Type | Size | Download |
|---|---|---|---|
| Multigauge-Surface-2.pdf | 1.71MB | Download |
